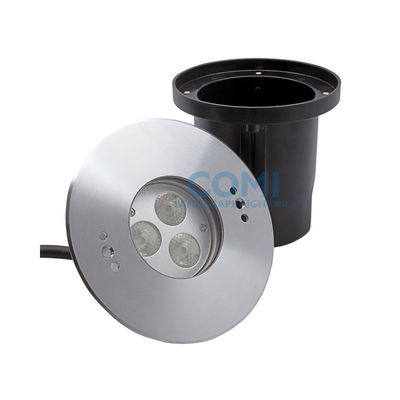

24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light

24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light
24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light 24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light

Large Image :  24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light

Product Details:
Place of Origin: Guangdong China
Brand Name: COMI LANDSCAPE LIGHTING
Certification: CE, ROHS
Model Number: B4XC0357, B4XC0457,B4XC0318, B4XC0418,C4XC0357, C4XC0457,C4XC0318, C4XC0418
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Packaging Details: 1unit/box, 4pcs/carton
Delivery Time: 3-18days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000pcs/month

24V DC RGB RGBW DMX512 IP68 SS316L LED Pool Light

Description
Product Name: SUS316 Stainless Steel LED Swimming Pool Light Input Voltage(v): DC24V
Light Source: 3pcs Or 4pcs High Power LED, COB LED Is Available Cri (ra>): 80
Light Efficiency: 70-80LM/W Color Temperature(cct): 2700K-7000K, Other Single Color, RGB,RGBW
Material: 316 L Stainless Steel For Front Cover And Housing Working Temperature(℃): -20 - 40
Working Lifetime(hour): 50000 Ip Rating: IP68
Certification: CE,RoHS,EMC,LVD Warranty: 2-3 Years
Application: LANDSCAPE,Swimming Pool,Fountain,Garden,Underwater
High Light:

SS316L LED Pool Light

,

DMX512 LED Pool Light

,

RGBW Led Underwater Pond Lights

Series B4XC is an 3*2W/3W/4W or 4**2W/3W/4W LED Underwater Lights for Pool lighting or other underwater lighting.The Housing and Accessory of the product is completely made of Stainless Steel SUS 316L#. Optional 0/1-10V,DALI, PWM,TRIAC dimming or DMX512 control upon request. ABS mounting sleeve included for easy installation. IP68 design and support underwater 2meters depth installation makes this this LED pool light ideal solution as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.







Features and Benefits:

  • Utilizes 3pcs or 4pcs 2W Osram or 3W RGB 3-in-1 LED as light source.
  • 24VDC low voltage input.
  • Made of SUS316L stainless steel completely for housing and accessories.
  • Symmetrical light output  and asymmetrical light output for options.
  • Overheat sensor inside(Optional).
  • IP68 waterproof,underwater installation in depth less than 1meter(advised).
  • Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
  • Standard non-dimmable.(Optional dimmable support with DALI, 1~10V, PWM. ).
  • PVC/ABS Mounting sleeve included.
  • 2 Years warranty.



Warning for COMI Landscape lighting's underwater pool lightWarning:
▪ Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
▪ This IP68 luminaire made of SUS316L stainless steel,so DO NOT operate the lighting fixture out of water for over 15 minutes (cooling).





Material Specifications:

Front cover & Housing Molding shaped stainless steel SUS316L#
Light Window Step tempered glass.T=8mm
Gasket EPDM gasket
Cable Gland IP-68 PG-11 copper with nickel-coated
Lens Optical lens,efficiency≥85%
PCB Excellent heat conductivity aluminum.
Coefficient of heat Conductivity≥2.0w/mk
LED Driver Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
Power Cable H05RN-F 21.0mm2,L=3.0m(for single color)
H05RN-F 4X0.75mm2, L=3.0m(for RGB)
Application Environment Temperature of water between -20˚C~40˚C,Underwater less than 1 meter depth.
Mounting Sleeve PVC Mounting Sleeve (Included)
Dimmable Support
(Optional)
Optional dimmable function support with DALI, 0~10V, PWM







Technical Specifications:

Item Number
Light Source
CRI
(White)
Standard Lens
Selected Lens
Degree (Θ1/2)
Input
Voltage(V)
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)
B4XC0357 3x2W
Osram
Ra>80 B33D 25° 24Vdc 242 5.8 CW=406
WW=389
08
B4XC0457
4x2W
Osram
Ra>80
B33D
25°
24Vdc
371
8.6
CW=619
WW=500
08
B4XC0318 3x3W
RGB 3-in-1
Full Color
/ B34D 30° 24Vdc R=120
G=134
B=134
9.2 111 08
B4XC0418
4x3W
RGB 3-in-1
Full Color
/
B34D
30°
24Vdc



R=150
G=174
B=174
12
180
08
C4XC0357 3x2W
Osram
Ra>80 C8 45°/3 24Vdc 242 5.8 CW=406
WW=389
08
C4XC0457
4x2W
Osram
Ra>80
C8
45°/3
24Vdc
371
8.6
CW=595
WW=479
08
C4XC0318 3x3W
RGB 3-in-1
Full Color
/ C8 45°/3 24Vdc R=120
G=134
B=134
9.2 111 08
C4XC0418
4x3W
RGB 3-in-1
Full Color
/
C8
45°/3
24Vdc
R=150
G=174
B=174
12
162
08

Notes:
1. COB LED for this 4XC LED Pool Light is avaible, inquire separately.
2. Specifications are subjected to change without notice.









Symmetrical light and asymmetrical Light output LED Pool Lights ( 3LEDs type is available)

Symmetrical light and asymmetrical Light output LED Pool Lights







Dimensional drawing for 4*2W or 4*3W LED Pool Lights



Dimensional drawing for 4*2W or 4*3W LED Pool Lights

Notes:

1. The above drawing is for B4XC04 and C4XC04 LED pool lights. And the B4XC03 and C4XC03 pool lights are wiht the same dimension with above dimension.

2. Front cover with dia 150mm is available.







Symmetrical lens and asymmetrical lens for LED Pool lights:



Symmetrical lens and asymmetrical lens for LED Pool lights



Asymmetrical light effect for Underground recessed or Wall Recessed LED Swimming Pool Lights:

Asymmetrical light effect for Underground recessed LED Swimming Pool Lights

Asymmetrical light effect for Wall Recessed LED Swimming Pool Lights













Important Notes for SUS 316L# Stainless Steel LED Swimming Pool Lights:

  • This product is a high power LED pool lights.
  • The standard color temperature of warm white is in range 2700-3200k ,neutral white in range 4000-4300K, cool white in range 6000-6500K.
  • The standard input voltage is 24VDC .When you install the product, please check the date label on the product and the wire.
  • Basic is Non dimmable. Optional PWM, 0/1 10V, DALI dimmable or DMX512 controllable support upon request.
  • This low voltage light fixture 24VDC input, please prepare powerful power supply or 24VDC output transformer . Total demand of power is according to total p ower consumption +total power of cable impedance consumption.
  • it is advised that the max output power of power supply(transformer) is more 25% than the total actual power of the lighting fixtures.
  • All the lighting fixtures is required to connect with the power supply in parallel.
  • When installation,always work with professional and liciensed technician or install by professional and liciensed technician.
  • This is IP68 grade product. This IP68 luminaire made of SUS316L stainless steel, Water must be allowed to go inside and outside sleeve freely without leaking from the other side.so DO NOT operate the lighting fixture out of water for over 15 minutes (cooling).
  • Applicable environment temperature : 20℃<fixture<+40℃.
