Product Details:
|
| Product Name: | 50W LED Floodlights | Input Voltage: | 85-265VAC |
|---|---|---|---|
| Light Source: | 100Pcs Epistar 5730 | Luminous Flux: | 5500LM |
| Material: | Aluminum | Working Temperature: | -30~60° |
| Body Color: | White | Light Efficiency: | >90% |
| Application: | Outdoor, Industrial Lighting | IP Rating: | IP65 |
| Feature: | High Intensity, With Driver | Warranty: | 3 Years |
| High Light: | outdoor led flood lamps,commercial flood lights |
||

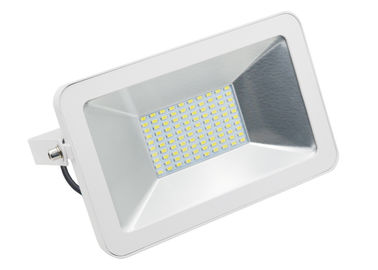

High Intensity Waterproof Led Flood Light Warm White 85-265VAC Input 50 Watts
CL-TGD-50WB High Intensity 85-265VAC Input 50 Watts Outdoor Ipad LED Flood Light with Driver CRI＞80 5500LM PF＞0.95, IP65 Waterproof LED Floodlights 3 Years Warranty
Features and Benefits:
1. Power version: 10w, 20w, 30w, 50w, 100w, 150w
2. High brightness: CRI＞80 and light soft.
3. Eco-friendly: the product adopts lead-free and mercury free process.
4. Long life: it can be used for more than 3 years under normal circumstances.
5. Energy saving: compared to traditional light sources, energy saving of more than 70%.
6. Color options: Warm White, Neutral White, Cool White; It can be meet the needs of different environments.
7. It can work in unstable voltage place by wide voltage input.
Specifications:
| Model Number | CL-TGD-50WB | Power Factor | >0.95 |
| Power | 50W | Beam Angle | 120° |
| Luminous Flux | 5500lm | IP Rating |
IP65 |
| Input Voltage | AC 85-265V 50-60Hz | Lifespan | 50000H |
| LED |
100Pcs Epistar 5730 |
Warranty | 3 years |
| Driver | Isolated constant current driver | Certification | CE/ RoHS/ SAA/ TUV/ SGS |
|
CCT |
2700K-6500K |
Product Size |
250*160*50 MM |
Series Items:
| No | Part Number | Power | LED | Lumen | PF | Product Size |
|---|---|---|---|---|---|---|
| 1 | CL-TGD-10WB | 10W | 20Pcs Epistar 5730 | 1000LM | 0.55 | 130*96*30mm |
| 2 | CL-TGD-30WB | 30W | 60Pcs Epistar 5730 | 3300LM | 0.95 | 200*135*38mm |
| 3 | CL-TGD-50WB | 50W | 100Pcs Epistar 5730 | 5500LM | 0.95 | 250*160*50mm |
| 4 | CL-TGD-100WB | 100W | 200Pcs Epistar 5730 | 11000LM | 0.95 | 300*205*60mm |
| 5 | CL-TGD-150WB | 150W | 300Pcs Epistar 5730 | 16500LM | 0.95 | 360*237*75mm |
Note:
1. Color options: Warm White, Neutral White, Cool White;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately.
Product Details:
Packing Details:
Inner box(Carton): G.W.: 1.7KGs/piece Material: K=K
Outer box(Carton): L600*W390*H215mm, 10pcs/canton, 17KGs
Important Notes:
1. Non professional technical personnel, please do not repair or modify the product without authorization.
2. In order to avoid improper operation and electric shock, please turn off the power before installation.
3. Please to check if the voltage on the light indicator is consistent with the input voltage to be connected before installation for not to damage the LED light.
Applications Place:
Advertising Board, Football field, Stage, Buildings, Gym, Yard, Lawn, Garden, Park, Shopping Mall, Exhibition Hall, Gas Station, Highway, Billboard, stadium, Workshop, Warehouse etc.
