IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K

China IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K supplier
IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K supplier IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K supplier IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K supplier

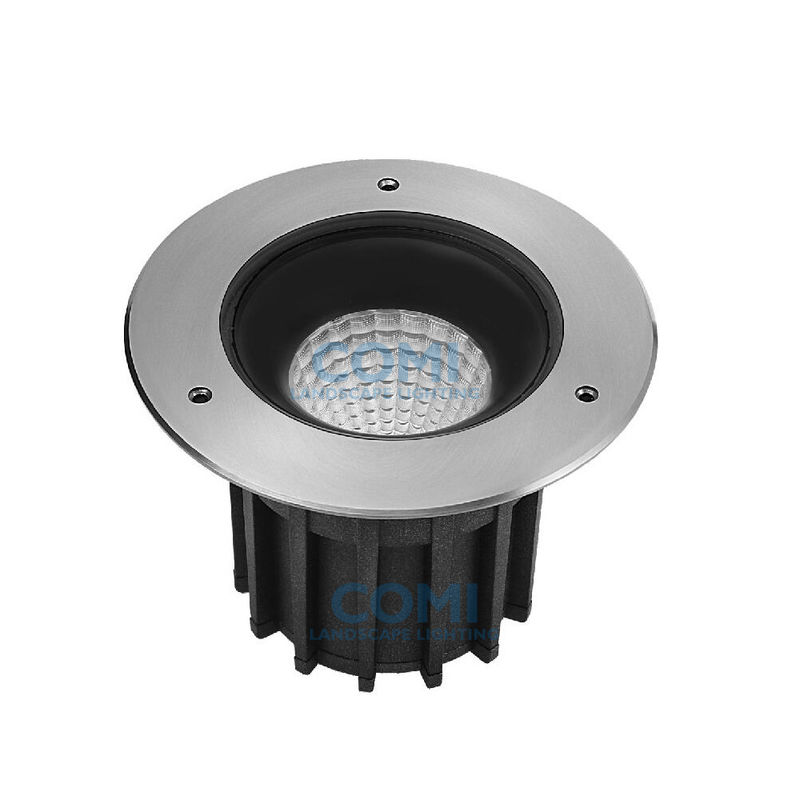

Large Image :  IP67 Outdoor Lighting LED Inground Light 15W CREE COB R2HCR0115 2200-6500K

Product Details:

Place of Origin: China
Brand Name: COMI Landscape lighting
Certification: CE ROHS
Model Number: R2HCR0115

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ
Packaging Details: 4pcs/Carton
Delivery Time: 3~20days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30000PCS/Month
Contact Now
Detailed Product Description
Item: COB Reflector LED Underground Lights Light Source: 15W CREE COB LED
Input Voltage: 24VDC, 110-240VAC CRI: Ra>80
Color: 2200-6500K Material: 316L Stainless Steel+aluminum Lamp Body
Light Efficiency: Up To 105LM/W Mounting Sleeve: Included
IP Rate: IP67 Warranty: 2~5 Years
Driver: Mean Well LED Driver High Voltage Version

The COMI LANDSCAPE LIGHTING INGROUND LIGHT R2H-series adopts CREE/NICHIA COB LED as its light source which is designed for floor integration and offers because of its high light output various design possibilities in architectural illumination. Optional accessory honeycomb louver for anti-glare soft light output. Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 Dimming by COMI Lighting recommended driver, dimmer, or controller, etc.

Features and Benefits:
▪ Adopts 10W COB LED as light source with high luminance output.
▪ Reflector efficiency≥90%.
▪ Optional honey comb louver for anti-glare and soft Light.
▪ Input Voltage 24VDC or 110/240VAC.
▪ 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity>2600KGs.
▪ TRIAC, PWM, 0/1-10V, DALI dimming support optional(Inquire separately).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2~5 Years warranty available.



ce rohs dimmable LED inground light



Material Specifications:

Housing

12#Die-Casting grey powder coated aluminum.

T=60-80μm Adhesion of ISO class 1/ASTM class 4B

Front Cover Stainless Steel SUS 316L#
Light Window Step tempered glass.T=8mm
Reflector Optical reflector efficiency≥90%
LED CREE or NICHIA COB LED
Glass Pressure Capacity Full Area=2610KGs
Cable Gland IP68 PG-9
Gasket Molding shaped seal
LED Driver Constant current driver
Operating Temperature -20˚C~40˚C
Electrical Connection 0.5 m H05RN-F 2x 1.0 mm² to open wires (Low Voltage)
0.5 m H05RN-F 3x 0.75 mm² to open wires (High Voltage)
Mounting Sleeve(Incl.) ABS
Control Support(Optional) Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 dimming support





Technical Specifications:

Item No. Light Source Lens Angle Input Voltage
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
Luminance (lm)
IK Rate
R2HCR0115
1×15W
CREE COB
Single Color
15°, 24°,
36°, 60°
24VDC
120/240Vac
24V=633
110V=153
240V=77
24V=15.2
110V=16.8
240V=16.8
Cool White=1680
Warm White=1428
09

Note: Specification is subjected to change without prior notice.
