| MOQ: | 1 psc |
| Standard Packaging: | 1piece/Box |
| Delivery Period: | 5-8 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100,000PCS/MONTH |

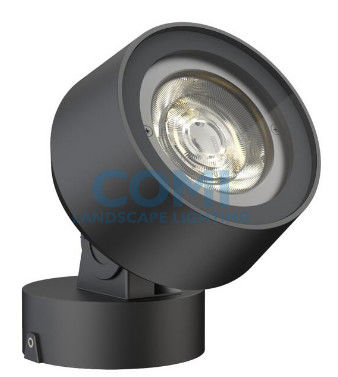

COMI Landscape lighting's B3Q is a an ideal LED architectural and landscape lighting for large buildings and objects. The round and conically-shaped luminaire housing which provides outstanding visual confort with good shielding properties. With various lens types and lens angle for options, the family of luminaires consists of several sizes with diverse light distributions-ranging from narrow spot, and wide flood to homogeneous wallwashing. Its circular design means the luminaire can be flexibly used in highly different room situations, architectural styles and other landscape objects. The pan-and-tilt mounting plate enables the luminaires to be precisely aligned for projection angle. Optional PWM, 0-10V, DALI, DMX512 dimming or control support upon request. IP65 rated and weather-proof housing design. B3Q features extensive mounting accessories the luminaire is also easy to install in a wide variety of outdoor applications.
Features and benefits:
▪ 6pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW) Cree High power LED or 1piece CREE COB LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with round base for wall/ceiling/ ground surface mounted;
also provides extensive mounting accessories for options:
(1) Ground spike;.
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).
Material Specifications:
| Housing | 12 Die-casting grey or black powder coated aluminum. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B |
| Light Window | Clear Temper glass. |
| Lens | Optical lens, efficiency≥90% |
| LED | CREE, OSRAM, EPISTAR and etc LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver | Integrated LED driver with Constant current output |
| Operating Temperature | -20℃~+40℃ |
| Round base (included) | Aluminum |
| Support | DALI, 0~10V,PWM, DMX512 control support upon request. |
Technical Specifications:
| Item Number |
Control
Method
|
Light Source | CRI |
Optional Beam
Angle(°)
|
Input Voltage |
Typical Power |
Typical Luminous
Flux(lm)
|
IK
Rate
|
| B3QEM0658 | ON/OFF |
6×3W
CREE LED
Single Color
|
Ra>80 |
6°, 12°,
25°,40°, 60°
|
24VDC
110-120VAC
220-240VAC
|
24V=18.6
110V=18.6
240V=18.6
|
Cool White=1355
Warm White=1161
|
IK10 |
| B3QEM0618 | PWM |
6×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 18.2 | 422 | IK10 |
| B3QEM0618DMX | DMX |
6×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 18.2 | 422 | IK10 |
| B3QEM0620 | PWM |
6×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 24 | 718 | IK10 |
| B3QEM0620DMX | DMX |
6×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 24 | 718 | IK10 |
| B3QEM0125 | ON/OFF |
1×20W
CREE COB LED
Single Color
|
Ra>80 |
18°, 24°, 38°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=18.6
110V=18.5
240V=18.5
|
Cool White=1402
Warm White=1265 |
IK10 |
Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
|
|
