| MOQ: | No MOQ |
| Standard Packaging: | 4pcs/cartons |
| Delivery Period: | 3-20days depends on order quantity |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 100,000pcs per month |

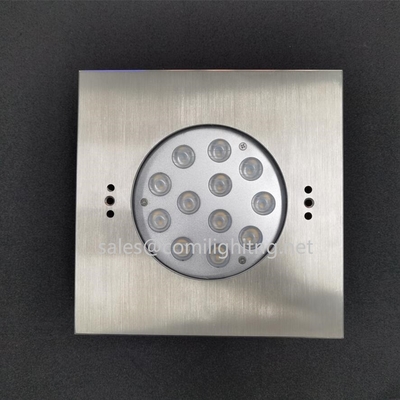

IP68 316L Stainless Steel Square Front Cover LED Underwater Pool Light 12x3W Single RGB RGBW Color
12x2W or 3W IP68 Wall Recessed LED Pool Lights with Asmemmetrical or Symmetrical Light Output
Completely stainless steel SUS 316L# housing & accessory
Material Specifications
| Front cover&Housing | Molding shaped sus 316L# stainless steel housing |
| Gasket | EPDM gasket |
| Window glass | Step tempered glass. T=10mm |
| Lens | Optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper with nickel -coated |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver | Constant current output ▪ Single color LED=2-circuit output ▪ RGB 3in1 LED=6-circuit output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Electrical connection | ▪ 1x cable 3meters H05RN-F 2x1.0mm² to open wires (for Single color) ▪ 1x cable 3meters H05RN-F 4x0.75mm² to open wires (for RGB) ▪ 1x cable 3meters H05RN-F 5x0.75mm² to open wires (for RGB DMX, Optional) 2 cores: Power +/-; 2 cores: DMX +/-; 1 core: Ground. |
| Installation by | PVC plastic mounting sleeve (included) |
| Dimmable or DMX512 | ▪ Standard non-dimmable. ▪ Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable support. |
Technical Specification
|
Part Number
|
Light Source
|
CRI
(White color) |
Lens
|
Selected Lens
Degree (Θ1/2) |
Input Voltage
(Vdc) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
|
|
B4ZB1257
B4ZB1257S
|
12×2W Osram
Single color |
Ra>80
|
B32
|
30
|
24Vdc
|
28.8
|
Cool white=2067
Warm white=1610 |
08
|
|
B4ZB1218
B4ZB1218S
|
12×2W
RGB 3-in-1 Full color |
-
|
B8
|
25
|
24Vdc
|
32.6
|
726
|
08
|
|
C4ZB1257
C4ZB1257S
|
12×2W Osram
Single color |
Ra>80
|
C8
|
45/35
|
24Vdc
|
28.8
|
Cool white=1395
Warm white=1181 |
08
|
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) and RGB
2. Specifications are subjected to change without notice.
LED and Lens
Application
|
|
