| MOQ: | No MOQ |
| Delivery Period: | 3~20days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 1,000,000Meters/Month |
Features and Benefits:

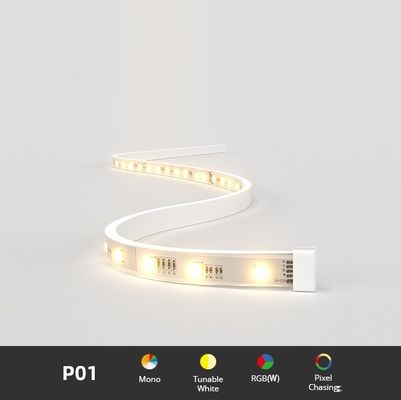

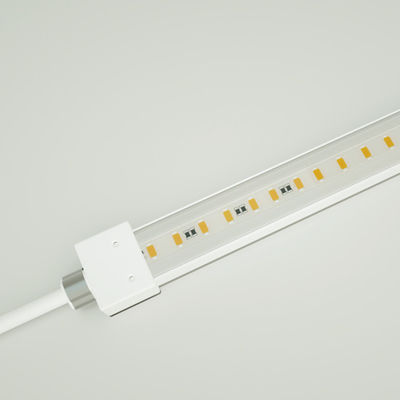

▪ Ultra-slim tube design: W15*T7mm, length can be customized made.
▪ Standard clear diffuser, Optional opal white diffuser.
▪ Top view and vertical bendable design, min diameter 50mm bending.
▪ High brightness output up to 1400LM/meter.
▪ Available color: single color, tunable white, RGB, RGBW
▪ Optional control method: DMX and SPI.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ UV/ flame/saltwater/solvent/dirt resistant.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Provides various smart accessories for mounting and installation.
▪ Beam angle:120°.
▪ Operation temperature: -25°C~+50°C.
▪ Rated IK08 and IP67, suitable for both indoor or outdoor applications.
▪ CE, ROHS certificate.
▪ Standard 3 years warranty (5 years warranty is available).
Technical Parameters:
1. IP67 Slim Neon LED Strip in Single Color and Tunable White Color:
|
Model Number
(Color Type)
|
Working Mode |
Color or
CCT(K)
|
Working
Voltage
|
Power
(W/M)
|
Luminous Flux (LM/meter) |
LED
Type
|
LED Q'ty
(pcs/M)
|
Beam
Angle
|
Min
Cutting Unit
|
Max Continuous Length Per Run | |
| One End Power Feed | Dual Ends Power Feed | ||||||||||
|
P01-24V-2835-120-XX
(Single Color)
|
CV,
ON/OFF,
Dimming
|
2200~6500K,
BL,LY,PK,GN
|
24VDC | 10W/M |
930~1000LM
(White color)
|
2835 | 120LEDs/m | 120° |
10cm
(3.93in)
(12LEDs)
|
10Meters
(32.8ft)
|
20Meters
(65.6ft)
|
|
P01-24V-2835-120-TW
(Tunable White)
|
CV,
ON/OFF,
Dimming
|
2200k+5000K,
3000K+5000K,
or Customized
|
24VDC | 15W/M |
1300~1400LM
(White color)
|
2835 | 120LEDs/m | 120° |
10cm
(3.93in)
(12LEDs)
|
10Meters
(32.8ft)
|
20Meters
(65.6ft)
|
Notes:
1.About light color for neon LED strip:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Customized made neon LED strip available.
4. Specifications are subjected to change without prior to notice.
Mounting Clip:
|
|
