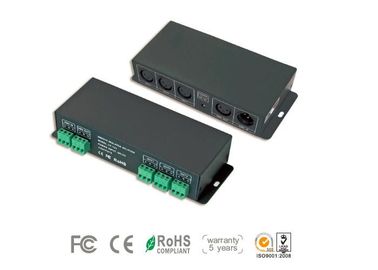

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output

China LED DMX Signal Amplifier Controller with 3 Channels Distributed Output supplier
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output supplier LED DMX Signal Amplifier Controller with 3 Channels Distributed Output supplier LED DMX Signal Amplifier Controller with 3 Channels Distributed Output supplier LED DMX Signal Amplifier Controller with 3 Channels Distributed Output supplier

Large Image :  LED DMX Signal Amplifier Controller with 3 Channels Distributed Output

Product Details:

Place of Origin: Guangdong China
Brand Name: LT-Series
Certification: CE, RoHS, FCC, ISO9001 : 2008
Model Number: CL-LT-123

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Package size:L270×W90×H46mm, G.W:620g
Delivery Time: 2~12 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description
Input Voltage: 12VDC Adapter: Adapter To Convert 100-240VAC To 12VDC Is Included
Input DMX Signal: 1CH DMX (485) Signal Input (photoelectricity Isolation>3kv) Output DMX Signal: 3CH DMX (485) Signal Output (photoelectricity Isolation>3kv)
DMX512 Socket: XLR-3,Green Terminal For Options Working Temperature: -30℃~65℃
Dimension: L192×W80×H41mm Package Size: L270×W90×H46mm
Weight(G.W.): 620g Warranty: 5 Years

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output



CL-LT-123 is dedicated to amplify, distribute, and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512.





Features and Benefits:

  • Designed for signal shaping amplification or boosting for DMX512 (485) signal and realize extending the signal transmission when the DMX signal become weak after a long-distance transmission,  distance;
  • Need to use the multiple signals expansion output control , increase DMX(485) signal amplifier to distribute multi-channel control.
  • With 1 channel DMX input and 3 channels distributed DMX output, there is a independently photoelectricity insulation of >3KV between Input and output terminals, and output terminals among 3 channels , so as to avoid the expensive equipment such as light ,DMX driver, precise digital lighting controller, being burnt by the possible high voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal interference between each DMX equipment, to assure it works safely.



Product Parameters:



Input Voltage 12VDC (adapter to convert 100-240VAC to 12VDC is included)
Input DMX Signal 1CH DMX (485) Signal Input (photoelectricity isolation>3kv)
Output DMX Signal 3CH DMX (485) Signal Output (photoelectricity isolation>3kv)
DMX512 Socket for options (Input or Output)XLR-3, Green Terminal
Working Temperature -30℃~65℃
Dimension L192×W80×H41mm
Package Size L270×W90×H46mm
Weight(G.W.) 620g



Configuration Diagram:



LED DMX Signal Amplifier Controller with 3 Channels Distributed Output





Dimensional Drawing(Units:mm):


LED DMX Signal Amplifier Controller with 3 Channels Distributed Output


Typical Wiring Diagram(For more different wiring diagram, please contact us separately):

LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
LED DMX Signal Amplifier Controller with 3 Channels Distributed Output



LED DMX Signal Amplifier Controller with 3 Channels Distributed Output
