2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring

Certification
Good quality LED Underwater Spot Light for sales
Good quality LED Underwater Spot Light for sales
I was impressed last time with their lighting developing and powerful manufacturing ability,strict control quality and Trained staffs and big factory!

—— Gabriele (Italy)

We have worked with them for about 6 years because of they provide Not only good quality and excellent service, but also powerful technology support!

—— Thomas Freeman (U.K.)

The goods was damaged by DHL during transportation, they sent us replacement within 7days! This beyond our expected warranty. Strong recommend!

—— Rob (USA)

Good quality products at a medium-priced. Quality is what we concerned first.Awesome, very good lighting, fast shipping, highly recommended. Thank you

—— Paul (Dubai)

Very Professional lighting manufacturer,always keep excellent service and stable/high quality goods, I strongly recommend this reliable partner.

—— Mr. Michele(Italy)

I'm Online Chat Now

2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring

China 2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring supplier
2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring supplier 2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring supplier 2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring supplier 2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring supplier

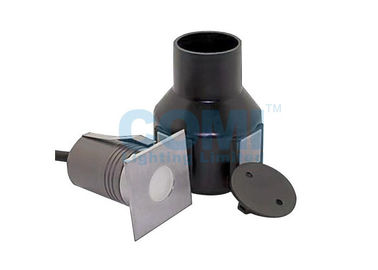

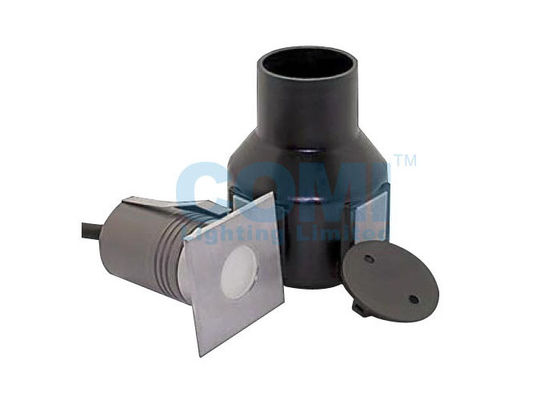

Large Image :  2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring

Product Details:

Place of Origin: Guangdong China
Brand Name: COMI LIGHTING (HK)
Certification: CE, ROHS, ETL, ISO9001: 2008
Model Number: D2WDS0157, D2WDS0118(RGB)

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Inner Box and Outer carton, 48pcs per carton, 22KGs/carton
Delivery Time: 5~15 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description
Item Type: Soft Beam LED Inground Light LED Brand: Osram, Cree, Citizen, Osram And Etc
Light Source: 1piece 2W Or 3W LED Or SMD LED Color: Single Color, RGB 3-in-1 Full Color
Lens Type: Frosted Or White Print Optic Lens Front Ring: Stainless Steel SUS 316#, Round Or Square Shape
Lamp Body: Made Of Die-cast Aluminum IP And IK Class: IP67 And IK08

D2WDS0157, D2WDS0118(RGB) 24VDC or 110 - 240V 1W/ 2W / 3W Soft Beam SMD LED Inground Light with Forsted Lens and Square Front Ring





Features and Benefits:

1. This series LED underground light uses frosted/white print or Milky glass enables the lamp with soft beam output.

2. Small type lamp body

3. Floor recessed, ceiling recessed, buried or wall recessed installation way by spring or by PVC mounting sleeve;

4. Dimming by 0-10V, DALI, PWM protocols or others;

5. RGB color version can be controlled by RGB LED controller, or DMX+ DMX decoder







Material Specification:

Housing: 12# Die-casting grey powder coated aluminum .
T=60-80µm.Adhesion of ISO class 1/ASTM class 4B
Front ring: Stainless steel SUS 316#
Lens: Optical lens, efficiency≥85%
Glass: Step tempered glass. T=7mm
Loading capacity: Full area 1704kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20℃~40℃
Power cable: 24VDC low voltage: H05RN-F 2X1.0mm2 L=0.5m
Main voltage:H05RN-F 3X1.0mm2 L=0.5m
RGB 24VDC:H05RN-F 4X0.75mm2 L=0.5m
Mounting sleeve: #011PVC







General Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)
Typical
luminance (lm)
IK
rate

D2WDR0157

1×2W 120°
24VDC Or
120 /240
24V=105
120V=33
240V=29
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
D2WDR0118 1×3W 120°
24VDC
R=38
G=53
B=54
3.5W 49 08

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.




2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring



2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring

2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring

2W / 3W / SMD Smooth Surface Light LED Inground Light with Square Front Ring









2WD-Series Family Products:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)
Typical
luminance (lm)
IK
rate
B2WDR0157
B2WDS0157
1×2W 20
24VDC Or
120 /240
24V=105
120V=48
240V=31
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
B2WDR0118
B2WDS0118

1×3W

RGB 3in1
Full color
30 24VDC
R=38
G=53
B=54
3.5W 49LM 08
C2WDR0157 1×2W 45/35
24VDC Or
120 /240
24V=105
120V=33
240V=29
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
D2WDR0157
D2WDS0157
1×2W 120
24VDC Or
120 /240
24V=105
120V=48
240V=31
24V=2.5
120V=3.3
240V=3.6
Cool white=35
Warm white=30
08
D2WDR0118
D2WDS0118
1×3W
RGB 3in1
Full color
120 24VDC
R=38
G=53
B=54
3.5W 25LM 08

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice

3. The first letter in part number stands for lens or glass types:

B stands for clear or Honeycomb lens symmetrical light

C stands for asymmetrical light

D stands for frosted/milk/white print lens with surface soft beam light
