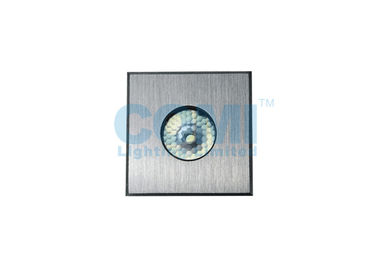

1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light

1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light

MOQ: 10PCS
Standard Packaging: Inner ox and outer carton
Delivery Period: 5~15 working days
Payment Method: T/T, L/C, Western Union, MoneyGram
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING
Certification
CE, ROHS, ETL, ISO9001:2008
Model Number
B2WDS0157, B2WDS0118(RGB)
Item Type:
IP67 LED Underground Lights
Working Voltage:
12VDC, 24VDC, 0r 110 -240VAC
LED:
1*2W Osram/Cree LED Or 3W 3-in-1 RGB LED
Power:
2.5W, 3.3W Or 3.6W
Luminance(LM):
Cool White=77, Warm White=65, RGB=49
CRI:
Ra>80
Front Cover:
Dia. 55mm Round Shape Stainless Steel SUS 316#
Lamo Body:
Die-cast Aluminum
Installation:
Spring And Mounting Sleeve
IP And IK Rating:
IP67 And IK08
Minimum Order Quantity:
10PCS
Packaging Details:
Inner ox and outer carton
Delivery Time:
5~15 working days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
High Light:

led buried light

,

in ground garden lights

Product Description

B2WDS0157, B2WDS0118(RGB) 24VDC or 110-240VAC 1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light





High power LED mini inground light combines 2W or 3W high-intensity top grade high power LED, optical-grade PMMA lens and advanced heat dissipation mechanism anodized aluminum finish to provide exceptional photometric performance, energy efficiency and longevity. It provides plastic sleeve for recessed or buried mounting. Spring fixture makes the installation easy for wooden ceiling and floor. It is design IP67 rating in path way, interior commercial building and garden.



The COMI Lighting INGROUND DOT is a decorative point of light and suitable for integration in floors, ceilings,walls or stairs indoors and outdoors. It is dimmable or DMX 512, DALI, 1-10 V controllable by power supplies or drivers or controllers and simplified install by spring clips and PVC plastic mounting sleeve (included).







Feataures and Benefits:

●IP Rating: IP67 for indoor or outdoor use;
● LED Source: 1piece 2W Or 3W High power LED;
● Input Voltage:24VDC standard (High voltage 110V/220VAC can be available);
● Emitting Color for options: Single Color and RGB Color;
● Mounting plastic sleeve: included;
● Finish Surface Treatment: Aluminum Anodized;
● Lens Type Options: symmetrical lens,Asymmetrical lens lens and White print or frosted glass;
● optical-grade PMMA lens: efficiency≥85%;
● Dimmable or RGB 24VDC Version is worked with DMX+DMX Decoder;
● Custom Made is available




Material Specification:

Housing: 12# Die-casting grey powder coated aluminum .
T=60-80µm.Adhesion of ISO class 1/ASTM class 4B
Front ring: Stainless steel SUS 316#
Lens: Optical lens, efficiency≥85%
Glass: Step tempered glass. T=7mm
Loading capacity: Full area 1704kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20℃~40℃
Power cable: 24VDC low voltage: H05RN-F 2X1.0mm2 L=0.5m
Main voltage:H05RN-F 3X1.0mm2 L=0.5m
RGB 24VDC:H05RN-F 4X0.75mm2 L=0.5m
Mounting sleeve: #011PVC







General Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)
Typical
luminance (lm)
IK
rate
B2WDS0157
1×2W 20
24VDC Or
120 /240
24V=105
120V=48
240V=31
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
B2WDS0118

1×3W

RGB 3in1
Full color
30 24VDC
R=38
G=53
B=54
3.5W 49LM 08



Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.







1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light 0

1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light 1







Dimensional Drawing(mm):

1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light 2





1 * 2W Small Square Recessed LED Inground Spot Lights with Strong Up Light 3







2WD-Series Family Products:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)
Typical
luminance (lm)
IK
rate
B2WDR0157
B2WDS0157
1×2W 20
24VDC Or
120 /240
24V=105
120V=48
240V=31
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
B2WDR0118
B2WDS0118

1×3W

RGB 3in1
Full color
30 24VDC
R=38
G=53
B=54
3.5W 49LM 08
C2WDR0157 1×2W 45/35
24VDC Or
120 /240
24V=105
120V=33
240V=29
24V=2.5
120V=3.3
240V=3.6
Cool white=77
Warm white=65
08
D2WDR0157
D2WDS0157
1×2W 120
24VDC Or
120 /240
24V=105
120V=48
240V=31
24V=2.5
120V=3.3
240V=3.6
Cool white=35
Warm white=30
08
D2WDR0118
D2WDS0118
1×3W
RGB 3in1
Full color
120 24VDC
R=38
G=53
B=54
3.5W 25LM 08

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice

3. The first letter in part number stands for lens or glass types:

    B stands for clear or Honeycomb lens symmetrical light

    C stands for asymmetrical light

    D stands for frosted/milk/white print lens with surface soft beam light
