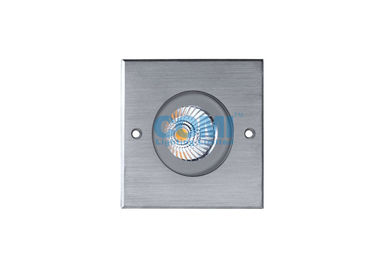

10W COB LED Underground Path Lights , LED inground Outdoor Lighting IP67 Waterproof

10W COB LED Underground Path Lights , LED inground Outdoor Lighting IP67 Waterproof

MOQ: 10PCS
Standard Packaging: Inner box and outer carton
Delivery Period: 5 ~ 15 Working Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING
Certification
CE, ROHS, ETL, ISO9001: 2008
Model Number
R2CDR0126, R2CDS0126
Item Type:
COB LED Inground Light
LED Source:
Cree Or Sharp COB LED
Power (W):
8W
Lumen:
750~850LM
Front Ring:
Square Or Round, Stainless Steel SUS 316L#
Lamp Housing:
Die-cast Aluminum
Installation:
By PVC Mounting Sleeve (Included)
IP And IK Rating:
IP67 And IK09
Minimum Order Quantity:
10PCS
Packaging Details:
Inner box and outer carton
Delivery Time:
5 ~ 15 Working Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100,000 pcs per month
High Light:

led buried light

,

in ground garden lights

Product Description

24V 110 - 240VAC 8.5W Cree or Sharp COB LED Inground Light 850LM & Sqaure Cover





Material Specification:

Housing: 12# Die-casting grey powder coated aluminum.

                T=60-80µm Adhesion of ISO class 1/ASTM class 4B
Front ring: Stainless steel SUS 316L#
Light Window: Step tempered glass.T=8mm
Glass pressure capacity: Full area=2578kgs
Reflector: Optical Reflector efficiency≥90%
Cable gland: IP-68 PG-9 PVC
LED: Multi chip on board LED
PCB: Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w /mk
Driver: Constant current output
Operating temperature: -20℃~40℃
Power cable: H05RN-F 2×1.0mm2 L=0.5M (low voltage)
                     H05RN-F 3×1.0mm2 L=0.5M (high voltage)
Mounting sleeve: 015# PVC







Technical Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical
operating
current (mA)
Typical
consumption
(w)
Typical
luminance
(lm)

IK

rate

R2CDR0126

1×10W
COB LED
25°

24VDC

110/240

VAC

24V=350

120V=135

240V=70

8.5 Cool white=850
Warm white=760
09

R2CDS0126

1×10W
COB LED
25°

110/240

VAC

24V=350

120V=135

240V=70

8.5 Cool white=850
Warm white=760
09



Notes:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately.





Dimensional Drawing (Units:mm)
10W COB LED Underground Path Lights , LED inground Outdoor Lighting IP67 Waterproof 0



10W COB LED Underground Path Lights , LED inground Outdoor Lighting IP67 Waterproof 1
