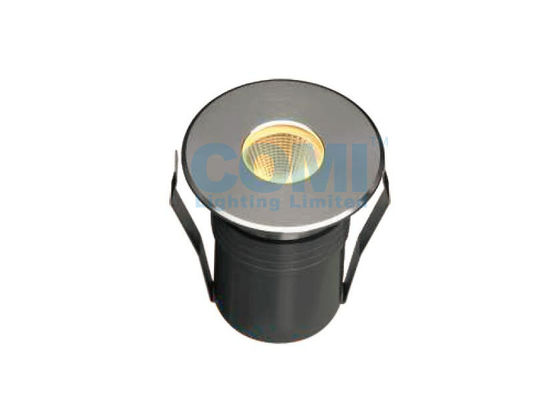

Mini Type 1 * 5W COB LED Inground Light Round Front Ring Install by Mounting Sleeve

Mini Type 1 * 5W COB LED Inground Light Round Front Ring Install by Mounting Sleeve

MOQ: 10PCS
Standard Packaging: Inner box and outer carton
Delivery Period: 5 ~ 15 Working Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING
Certification
CE, ROHS, ETL, ISO9001: 2008
Model Number
R2IR0125
Item Type:
Small Type COB LED Inground Light
LED Source:
Cree Or Sharp COB LED
Power (W):
6W
Lumen:
Cool White=506, Warm White=422
Front Ring:
Square Or Round, Stainless Steel SUS 316L#
Lamp Housing:
Die-cast Aluminum
Installation:
By PVC Mounting Sleeve (Included)
IP And IK Rating:
IP67 And IK07
Minimum Order Quantity:
10PCS
Packaging Details:
Inner box and outer carton
Delivery Time:
5 ~ 15 Working Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100,000 pcs per month
High Light:

led underground light

,

in ground garden lights

Product Description

R2IR0125 24VDC or 110 -240VAC 1 * 5W Mini COB LED Inground Light Round Front Ring Outdoor Rated IP67





Features and Benefits:

1. COB LED as its light source

2. Small size lamp body dia. 70(Front Ring)*H82mm*Dia52mm(housing), or Square 66*66mm (Front ring) *H82mm*Dia52mm(housing);

3. Install by Spring and PVC mounting sleeve(included)

4. Square or round front ring made of Stainless steel SUS 316L# and lamp housing made of Die-casting aluminum;

5. 7mm thickness Step tempered glass Light Window, Full area=633kgs Glass pressure capacity.





Material Specification:

Housing: 12# Die-casting grey powder coated aluminum.

                T=60-80µm Adhesion of ISO class 1/ASTM class 4B
Front ring: Stainless steel SUS 316L#
Light Window: Step tempered glass.T=7mm
Glass pressure capacity:
Full area=633kgs
Reflector: Optical Reflector efficiency≥90%
Cable gland: IP-68 PG-9 PVC
LED: Multi chip on board LED
PCB: Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w /mk
Driver: Constant current output
Operating temperature: -20℃~40℃
Power cable: H05RN-F 2×1.0mm² L=0.5M (low voltage)
                     H05RN-F 3×1.0mm² L=0.5M (high voltage)
Mounting sleeve: 065# PVC







Technical Information:

Item No.

Light

source

Reflector
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical
operating
current (mA)
Typical
consumption
(w)
Typical
luminance
(lm)

IK

rate

R2IR0125

1×5W
SHARP COB
R7 30°

24VDC

110/240

VAC

24V=200
120V=88
240V=50

24V=4.8
120V=5.7
240V=6.2
Cool white=506
Warm white=422
08

R2IS0125

1×10W
COB LED
R7 30°

24VDC

110/240

VAC

24V=200
120V=88
240V=50

24V=4.8
120V=5.7
240V=6.2
Cool white=506
Warm white=422
08



Notes:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately.



Dimensional Drawing (Units:mm)

Mini Type 1 * 5W COB LED Inground Light Round Front Ring Install by Mounting Sleeve 0
Mini Type 1 * 5W COB LED Inground Light Round Front Ring Install by Mounting Sleeve 1
