| MOQ: | 1 |
| Standard Packaging: | Package Size(1piece): L193×W127×H41(mm), G.W.: 0.8KGs |
| Delivery Period: | 3~12 Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000pcs per month |

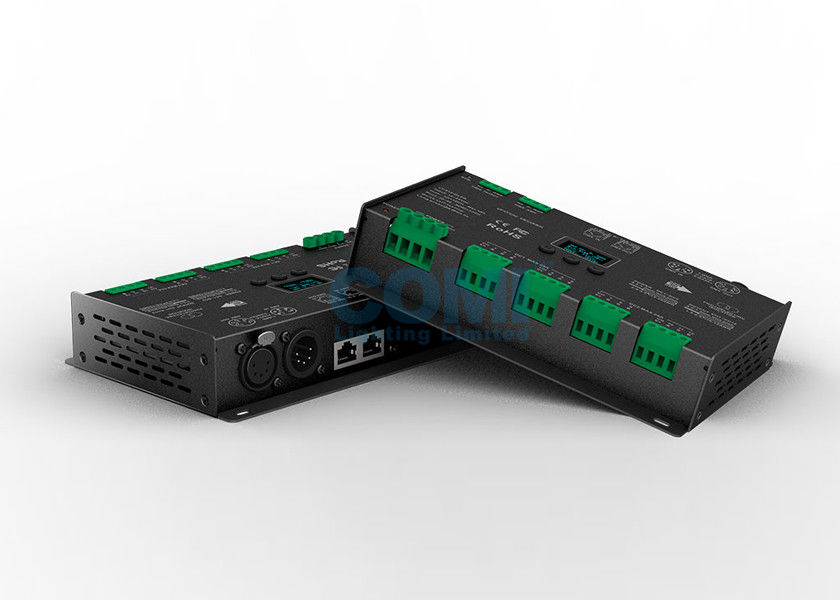

CL-LT-912-OLED 12~24VDC 4A*12CH Up to 1152W Output DIM/ CT/ RGB CV DMX Decoder with Signal Isolation Function and Green Terminals with Signal Amplifier Function
Product Introduction:
1. Designed for Hi-power multiple channels application,12 channels output, and Max. 4A current per channel, up to 1152W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, color temperature, RGB.
Support 3 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45, green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
5. With photoelectric isolation function.
6. With shortcut protection and over load protection, as well as warning function when fault.
7. With fast self-testing function.
8. 16bit / 8bit resolution optional.
9. Multiple dimming curve (0.1~9.9) optional.
| nput signal | DMX512/RDM |
| Input voltage | DC12V～DC24V |
| Max load current | 4A ×12CH Max. 48A |
| Max output power | (0~48W...96W) x12CH Max.1152W |
| DMX512 socket | XLR-5, RJ45, Green Terminal |
| Control mode | DIM/CT/RGB |
| DIM Curve | 0.1～9.9 |
| Gray scale level | 8bit(256 levels)/16bit(65536 levels) |
| Photoelectric Isolation | Yes |
| Working temperature | -30℃～65℃ |
| Dimension | L180×W122×H39(mm) |
| Package Size | L193×W127×H41(mm) |
| Weight (G.W) | 800g |
Outer Size(mm):
Multiple dimming curve ( 0.1~9.9) optional:
Typical Wiring Digaram:
|
|
