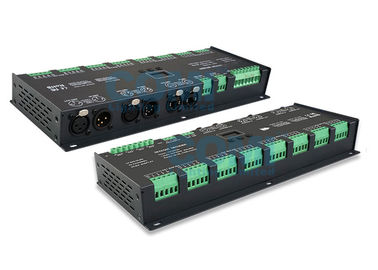

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function
3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function

Large Image :  3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function

Product Details:
Place of Origin: Guangdong China
Brand Name: LT-Series
Certification: FCC, CE, ROHS, ISO 9001:2008
Model Number: CL-LT-924-OLED
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Packaging Details: Package Size(1piece): L309×W127×H41(mm), G.W.: 1.3KGs
Delivery Time: 3~12 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100000pcs per month

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function

Description
Item Type: 24CH DMX Decoder Input Signal: DMX512/RDM
Input Voltage: DC12V~DC24V Max Load Current: 3A ×24CH Max. 72A
Max Output Power: (0~36W...72W) X24CH Max.1728W DMX512 Socket: XLR-3, RJ45, Green Terminal
Control Mode: DIM/CT/RGB DIM Curve: 0.1~9.9
Gray Scale Level: 8bit(256 Levels)/16bit(65536 Levels) Photoelectric Isolation: Yes
Dimension: L300×W122×H39(mm) Warranty: 5 Years
High Light:

led strip controller

,

dmx decoder controller

CL-LT-924-OLED 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function, Support 4 kinds of DMX ports with Signal Isolation Function: 3-pin XLR, 5-pin XLR,RJ45 and Green Terminal (with signal amplifier function)





Product Introduction:
1. Designed for Hi-power multiple channels application,24 channels output, and Max. 3A current per channel, up to 1728W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, color temperature, RGB.
Support 3 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45, green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
5. With photoelectric isolation function.
6. With shortcut protection and over load protection, as well as warning function when fault.
7. With fast self-testing function.
8. 16bit / 8bit resolution optional.
9. Multiple dimming curve (0.1~9.9) optional.







Technical Specs:
nput signal DMX512/RDM
Input voltage DC12V~DC24V
Max load current 3A ×24CH Max. 72A
Max output power (0~36W...72W) x24CH Max.1728W
DMX512 socket XLR-5, RJ45, Green Terminal
Control mode DIM/CT/RGB
DIM Curve 0.1~9.9
Gray scale level 8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation Yes
Working temperature -30℃~65℃
Dimension L300×W122×H39(mm)
Package Size L309×W127×H41(mm)
Weight (G.W) 1200g

 3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 0



3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 1









Outer Size(mm):





3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 2







3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 3









Multiple dimming curve ( 0.1~9.9) optional:



3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 4









Typical Wiring Digaram:



3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 5

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 6

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 7

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 8

3A * 24CH Up to 1728W CV DMX Decoder with Photoelectric Isolation Function 9
