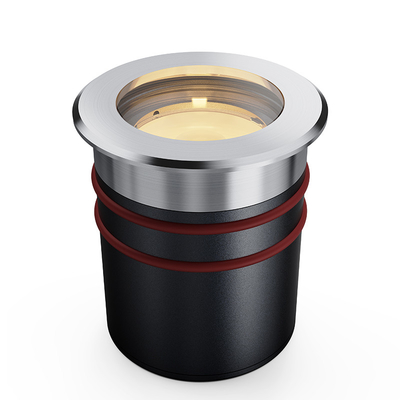

The COMI LANDSCAPE LIGHITNG inground light is designed for ground or floor integration and offers various design possibilities in architectural illumination.
Features and Benefits:
• Dimension: Dia.80xH98mm.
• Front cover: Round cover (Optional square cover).
• Light Source:1piece 10W CREE COB LED single color LED.
• Input voltage: 24VDC, 110-120VAC, 220-240VAC
• Light color or CCT(K): 2700K, 3000K, 4000K, 5000K, 6000K, 6500K and others.
• Light Efficiency: 60~85LM/W (Vary from different CCK, lens angle, CRI and etc.).
• CRI: Standard CRI80+, Optional CRI70+, CRI90+.
• Output Light type: Symmetrical light output.
• Materials: SUS 316 stainless steel front ring and Die-casting aluminum housing.
• Optional accessory:Honeycomb louver, used for anti-glare light.
• Dimming and control methods:
(1) Basic ON/OFF and Non-dimmable.
(2) Optional dimming with remote 0/1-10V, DALI,DMX dimming driver support.
• Installation: Easy recessed installation by rubber O-ring or stainless steel spring.
• Mounting accessory: aluminum mounting sleeve (included)
• IP rate: IP67 waterproof for outdoor use.
• IK rate: IK08.
• Warranty: 2 Years warranty.
• Certificates:CE, RoHS.
| Housing | 12 Die-casting black powder coated aluminum . T=60-80μm.Adhesion of ISO class 1/ASTM class 4B |
| Front Ring | Stainless Steel SUS316# |
| Lens | Optical lens, efficiency≥85% |
| Light Window | Step temper glass. T=7MM |
| Glass pressure capacity | Fulll area=1652 KGs |
| LED | Osram, CREE LED |
| Driver | Integral driver with constant current output |
| Gasket | Molding shaped silicone seal |
| Operating temperature | -20℃~+40℃ |
| Power Cable | 0.5m H05RN-F 2×1.0 mm² (24VDC) 0.5m H05RN-F 3×0.75 mm² (110-240VAC) |
| Mounting part | Rubber O-ring, or stainless steel spring piece |
| Mounting Sleeve | Aluminum alloy |
| Item Number | Light Color | Light Source |
Beam
Angle
|
Input
Voltage
|
Typical
Power
|
Luminance
(LM)±5%
|
IK
Rate
|
| B2QER0110 |
Single
Color
|
1x10W
Cree COB
LED, CRI 80+
|
15°, 25°,
40°, 60°
|
24VDC
120/240VAC
|
11.2W |
Cool White=842
Warm White=725
|
08 |
Notes:
1. Single color (CCT(K)+/- 8%): 2700K, 3000K, 4000K, 5000K, 6000K, 6500K,and others;
2. Specification is subjected to change without notice.
|
|
