24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80

China 24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier
24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier 24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier 24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier 24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier 24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80 supplier

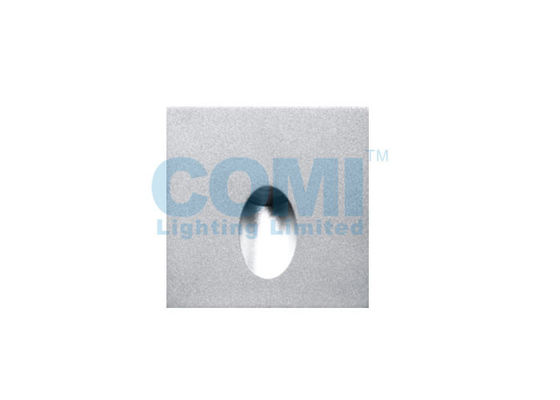

Large Image :  24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80

Product Details:

Place of Origin: Guangdong China
Brand Name: COMI Lighting
Certification: CE, ROHS
Model Number: B1QS0101, B1QS0101-RGB

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Inner box and Outer carton
Delivery Time: 5 ~ 15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Item Type: Recessed LED Step & Wall Light LED: 1 Piece 1W, 2W Or 3W LED
Color: Single Color Or RGB Or RGBW Material: Aluminum
Installation: By Clips Or PVC Mounting Sleeve Power: 2.6W, 3.3W , Or 3.5W(RGB)
Luminance (LM): Cool White=75, Warm White=66 IP And IK Rating: IP65 And IK10

B1QS0101, B1QS0101-RGB 24VDC or 110-240VAC IP65 Asymmetrical Square Recessed LED Step Lights & Wall Lights



Features and Benefits:

1. Light downward ellipse Asymmetrical Light distribution

2. Installation with clips and recessed into wooden hole directly

3. Installation clips embedded into PVC mounting sleeve(included) and fix on the concrete wall

4. Various color for options for front cover , standard color White aluminium , the other colors are available based on reasonable order quantities.

5. Emitting color: Single color or RGB multipul Full color

6. IP65 waterproof







Material specifications:

Housing
12 Die-casting aluminum T=20-25μm.
Adhesion of ISO class 1/ ASTM class 4B high temperature painting
Light Source Emitter type power LED
Driver Constant current output
Operating temperature -20℃~40℃
Power cable
H05RN-F 3X1. 0mm² L=0.3m(high voltage)
H05RN-F 2X1. 0mm² L=0.3m(low voltage)
Installation PVC Mounting Sleeve included









Technical Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical operating
current
(mA)
Typical
consumption
(w)
Typical
luminance (lm)
IK rate
B1QS0101
1×2W 80
24VDC
120/ 240
24V=110
120V=48
240V=28
24V=2.6
120V=3.3
240V=3.3
Cool white=75
Warm white=66
10

B1QS0101-RGB

1×3W

RGB

3-in-1

80
24VDC
R=38
G=53
B=54
24V=3.5
50
10

Note:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.







     24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80



Outder Dimension (mm):





24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80





24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80





24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80



24VDC or 110-240VAC 3W Osram LED Asymmetrical Square Recessed Step Lights CRI 80









Family Products:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical operating
current
(mA)
Typical
consumption
(w)
Typical
luminance (lm)
IK rate

B1QR0101

(Round)

1×2W 80
24VDC
120/ 240
24V=110
120V=48
240V=28
24V=2.6
120V=3.3
240V=3.3
Cool white=75
Warm white=66
10

B1QS0101

(Square)

1×3W

80
24VDC
120/ 240
24V=110
120V=48
240V=28
24V=2.6
120V=3.3
240V=3.3
Cool white=75
Warm white=66
10
