|Item Type:||Class-A LED Strip Light||LED Type:||3Chip-in-1 5050SMD LED|
|LED Quantity:||60pcs/meter||Input Voltage:||12VDC ( Or 24VDC)|
|Max Power (W):||14.4W / Meter||Color & Kelvin:||PINK COLOR 25000K|
|FPC:||12mm (or 10mm) Width White FPC||Standard Reel:||5Meters /Reel|
|Beam Angle:||120Degree||Installation:||By 3M Adhesive Back Tape (Included)|
|IP Rating:||IP20 Nonwaterproof||Power Wire Lead:||20cm AWG22 Power Wire Lead|
led outdoor strip lights,
led linear strip light

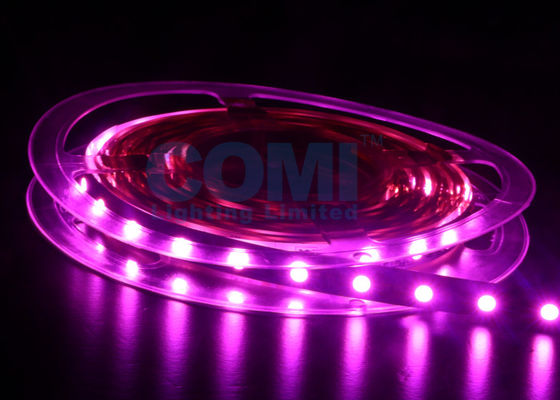

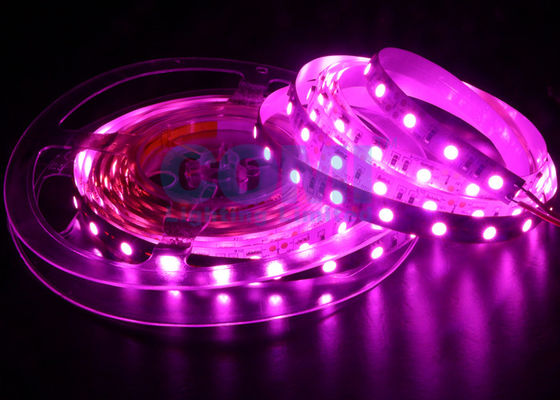

CL-SS5050PK60-P1 12V or 24V IP20 5050 60LEDs / M 12mm Width FPC Flexible LED Strip in Pink Color ( 25000K ) 14.4W/M CE/ RoHS/ ETL Listed
Class-A series CL-SS5050XX60-P1 is an 12mm (or 10mm) wide flexible copper strip and comes with low voltage 20cm red&black or RGB/+ wire lead, it adopts 60pcs 3 chips-in-1 5050SMD top LED per meters and consumes only max 14.4W per meter. For custom lengths available in 50~5000mm. Max run length of 5meters. It is designed rated IP20 for indoor or dry location only.
The LED strip light offers a simplified installation to the smooth finish surfaces by 3M adhesive on the back of the strip , or to rough surfaces by mounting clip(order separately) .Use plug-in flexible connectors (Please inquire separately) for making turns and custom configurations.
The RGB version CL-SS5050RGB60-P1 controlled by RGB controller provides dynamic color effects Over 16 million possible colors with red, green and blue LEDs . It is fantastic LED linear tape lighting solution to decorate your environments.
1. LED Linear ribbon is also named as flexible LED strip, or LED Tape light,LED Strip light, LED Linear strip or LED Soft strip, and etc.
2. XX in part number stands for emitting color.
Features and Benefits:
1. LED Chip: Pink color 25000K 5050SMD LED with beam angle 120degree;
2. Working Voltage 12VDC or 24VDC
3. Max wattage per meter: Max. 14.4W/m
4. Cutting: May be field cut every 50mm(3LEDs) for 12V or 100mm(6LEDs) FOR 24V at regular intervals without damage the rest of strip light
5. Mounting: Simplified installation with 3M self-adhesive tape on the back of LED strip
6. Smooth and Continuous ELV dimming with Electronic Low Voltage dimmer
7. Color uniform: Strict binning controls provide consistent LED color and quality of Light
8. Construction: Flexible white FPCB with rolled copper for long life with 60 LED’s spaced evenly per metre.
9. IP Rating: IP20
10. Connection: Easy connect push fit connectors for cutting and joining.
11. Custom made is available.
Indoor and dry locations use only--
● Above/inside/under cabinet, coving, shelves;
● Behind mirror, inside drawer, handrails, steps, Club;
● Signage and sign lighting, back lighting, Display cases;
● Task Lighting, retail Lighting, general illumination;
● Built in LED Panel Lighting, Install in aluminum profile and etc.
|Part Number||Color||LED Type||
1."XX" in part number stands for the LED emitting color,Kelvin or Wave length for above LED emitting color:
(1) Golden Color (2000-2200K), Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm), Yellow (YL, 588~592nm);
2.CRI>80 or 90+ are available;
3.Specification and availability are subjected to change without notice；
4. For rating IP65,IP67,IP68 versions , please inquire us separately.(what is name methods for difference IP rating LED Strip in COMI Lighting?
Dimensional Drawing (Unit:mm): L5000*W12*H2.2mm
