| Delivery Period: | 5-8 working days |
| Payment Method: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |

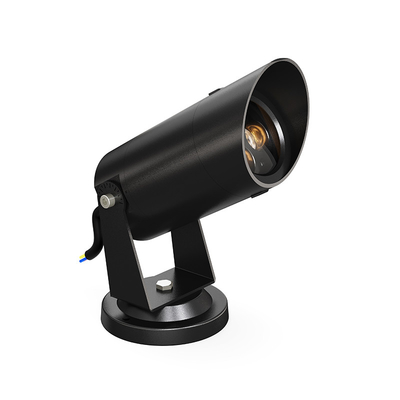

The COMI Landscape Lighting IP65 LED Spotlights with visor are suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant lighting, garden and landscape Lighting, and Architectural Lighting.
Features and Benefits:
• Light color: single color, RGB, RGBW, very warm white 2000~2200K.
• Input voltage: 12/24VDC, or 110-120VAC, 220-240VAC, 50/60Hz.
• Light Efficiency: 60~85LM/W (for 2000~6500K white color only).
• Light Source: 1piece 12W COB LED, or 3pcs 3W/4WLED.
• Beam angle for options: 8°,15°, 25°, 40°, 60°.
• CRI: Ra>80 (Basic), Optional Ra>70 or Ra>90.
• Optional accessories:
(1) Honeycomb louver for anti-glare light.
(2) Visor (also named as hood, or light shield)
• Vertical or horizontal projecting direction adjustable.
• Finish color: Matte black or dark grey powder painting.
• Control mode: standard ON/OFF.
Optional dimming with remote DALI, 1-10V,TRIAC or DMX 512 dimming driver.
• Mounting accessories for options:
(1) round base: surface mounted on ground/wall/ or ceiling.
(2) Spike: stake into ground
(3) Strap: mounted on pole or tree trunk.
• IP Rate: IP65, suitable for both indoor or outdoor applications.
• IK Rate: IK04.
• Certificates: CE, RoHS
• Warranty: 2 Years.
• Customized made is available.
| Item Number | Light Source | Light Color |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Typical Power
Consumption
|
Typical Luminance
(LM)
|
IK
Rate
|
| B3CB0357H-B | 3×2W OSRAM/ CREE LED |
Single
Color,
2000-2200K
|
5°, 8°,
15°, 25°,
40°, 60°
|
12/24VDC,
120/240VAC
|
6.2W |
Cool white=446
Warm white=379
|
04 |
| B3CB0358H-B | 3×4W OSRAM/ CREE LED |
Single
Color,
|
8°,
15°, 25°,
40°, 60°
|
12/24VDC,
120/240VAC
|
11.8W |
Cool white=850
Warm white=722
|
04 |
| B3CB0110H-B | 1×12W CREE COB LED |
Single
color
|
15°, 30°,
40°, 60°
|
12/24VDC,
120/240VAC
|
12.2W |
Cool white=985
Warm white=841
|
04 |
| B3CB0318H-B |
3×3W RGB
3-IN-1 LED
|
RGB
Full Color
|
25°,
40°, 60°
|
12/24VDC | 9.3W | 205 | 04 |
| B3CB0320H-B | 3×4W RGBW 4-IN-1 LED |
RGBW
Full Color
|
25°,
40°, 60°
|
12/24VDC | 12.4W | 397 | 04 |
Notes:
1. The last letter in item number stands for The code of mounting accessories for IP65 outdoor LED spot lights:
| Code | Mounting Accessories | Mounting Method |
| B | Round base | Surface mount on ground, wall, or ceiling |
| S | Spike | Stake into Ground |
| T | Tree Strap | mounted on tree trunk or pole by strap |
2. Color: Single color (2000-2200K,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Green and others) RGB, RGBW,
3. Specifications are subjected to change without notice.
