| MOQ: | 10PCS |
| Standard Packaging: | 20pcs/19KGs/L590*W330*H210mm |
| Delivery Period: | 5~16 working days after receiving payment |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |

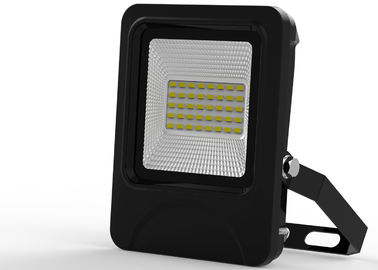

Waterproof 20 Watt LED Garden Flood Lights Super Bright Energy Efficient
CL-TG005-20W AC85-265V Input 20Watt 40pcs Epistar SMD5730 Energy Efficient LED Garden Floodlights CRI＞80 1100LM PF＞0.9, IP66 Waterproof LED Flood Lamps
Features:
1. This new design commercial led floodlight adopt SMD Epistar high brightness.
2. High brightness, and energy saving of more than 60%.
3. A variety of color options, It can meet the needs of different environments.
4. The product is equipped with adjustable light device, which is available for selection.
5. It can be used for more than 3 years under normal circumstances.
6. The product uses constant current power supply has the advantages of low heat and high constant current precision.
7. Lamp body material adopts aluminum and tempered glass, corrosion resistance and weather resistance, good heat dissipation.
Specifications:
|
Part Number |
CL-TG005-20W |
Power Factor |
>0.55 |
|
Power |
20W |
Beam Angle |
120° |
|
Luminous Flux |
2200LM |
IP Rating |
IP66 |
|
Input Voltage |
AC 85-265V 50~60Hz |
Lifespan |
30000Hrs |
|
LED |
40pcs Epistar SMD5730 |
Warranty |
3 years |
|
Driver |
Isolation Constant Current Dirver |
Certification |
TUV CE/ RoHS/FCC/ SAA/ UL |
|
CRI |
>80 |
CCT |
3000K-6500K |
|
Light Effect |
100LM/W(±5%) |
Product Size |
175*135*44MM |
Series Items:
| No | Part number | Power | Lumen | PF | LED |
Driver |
Product Size |
|---|---|---|---|---|---|---|---|
| 1 | CL-TG005-10W | 10W | 1100LM | 0.55 | 20pcs | Constant current driver | 129*99*44mm |
| 2 | CL-TG005-20W | 20W | 2200LM | 0.55 | 40pcs | Constant current driver | 175*135*44mm |
| 3 | CL-TG005-30W | 30W | 3300LM | 0.95 | 60pcs | Constant current driver | 215*175*47mm |
| 4 | CL-TG005-50W | 50W | 5500LM | 0.95 | 100pcs | Constant current driver | 275*225*48mm |
| 5 | CL-TG005-100W | 100W | 11000LM | 0.95 | 200pcs | Constant current driver | 325*275*53mm |
| 6 | CL-TG005-150W | 150W | 16500LM | 0.95 | 300pcs | Constant current driver | 385*305*58mm |
Note:
1. Color options: Warm White(2900-3200K), Neutral White(4000-4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Test Reports:
Packing Details:
N.W: 0.86KGs/piece G.W.: 20pcs/19KGs/Canton
Outer box(Carton): L590*W330*H210mm
|
|
