| MOQ: | 10PCS |
| Standard Packaging: | 14piece/19.5KGs/L440*W400*H250mm |
| Delivery Period: | 5~16 working days after receiving payment |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |

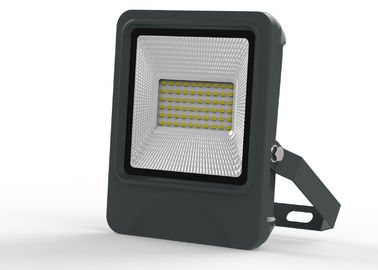

30 Watts Warm White IP66 Led Garden Flood Lights , Outdoor Landscape Lighting
CL-TG005-30W 85-265VAC Input 30 Watts 60pcs Epistar SMD5730 Energy Efficient LED Garden Floodlights CRI＞80 3300LM PF＞0.95, IP66 Waterproof LED Flood Lamps for Landscape Lighting
Features:
1. The lamp body is made of high quality aviation aluminum. It has high thermal conductivity, high heat resistance, no rust, and durable.
2. The maintenance cost is small, and the service life is long, up to 50,000hours.
3. Mounting bracket can adjust the angle of light projection, lateral adjustable and easy to install.
4. This model reaches IP65 with special waterproof and other protection measures, .
5. Application to streets, commercial buildings, hotels, stores, streets, golf courses, restaurants, tennis courts etc.
Specifications:
|
Part Number |
CL-TG005-30W |
Power Factor |
>0.95 |
|
Power |
30W |
Beam Angle |
120° |
|
Luminous Flux |
3300LM |
IP Rating |
IP66 |
|
Input Voltage |
AC 85-265V 50~60Hz |
Lifespan |
30000Hrs |
|
LED |
60pcs Epistar SMD5730 |
Warranty |
3 years |
|
Driver |
Isolation Constant Current Dirver |
Certification |
TUV CE/ RoHS/FCC/ SAA/ UL |
|
CRI |
>80 |
CCT |
3000K-6500K |
|
Light Effect |
100LM/W(±5%) |
Product Size |
215*175*47MM |
Series Items:
| No | Part Number | Power | Lumen | PF | Light Source | Driver |
|---|---|---|---|---|---|---|
| 1 | CL-TG005-10W | 10W | 1100LM | 0.55 | 20pcs Epistar SMD5730 | Isolation constant current driver |
| 2 | CL-TG005-20W | 20W | 2200LM | 0.55 | 40pcs Epistar SMD5730 | Isolation constant current driver |
| 3 | CL-TG005-30W | 30W | 3300LM | 0.95 | 60pcs Epistar SMD5730 | Isolation constant current driver |
| 4 | CL-TG005-50W | 50W | 5500LM | 0.95 | 100pcs Epistar SMD5730 | Isolation constant current driver |
| 5 | CL-TG005-100W | 100W | 11000LM | 0.95 | 200pcs Epistar SMD5730 | Isolation constant current driver |
| 6 | CL-TG005-150W | 150W | 16500LM | 0.95 | 300pcs Epistar SMD5730 | Isolation constant current driver |
Note:
1. Color options: Warm White(2900-3200K), Neutral White(4000-4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Test Reports:
Packing Details:
N.W: 1.3KGs/piece G.W.: 19.5KGs/14piece/Canton
Outer box(Carton): L440*W330*H210mm
|
|
