Product Details:
|
| Product Name: | 100W LED Floodlights | Input Voltage: | 85-265VAC |
|---|---|---|---|
| Light Source: | 200Pcs Epistar SMD 5730 | Luminous Flux: | 2200LM |
| Material: | Die-casting Aluminum | Working Temperature: | -30℃~60℃ |
| Light Efficiency: | 100LM/W（±5%） | CRI: | >80 |
| Warranty: | 3 Years | IP Rating: | IP66 |
| Feature: | Fixture Black And Grey Housing | Application: | Outdoor Lighting Projects |
| High Light: | outdoor led flood lamps,commercial flood lights |
||

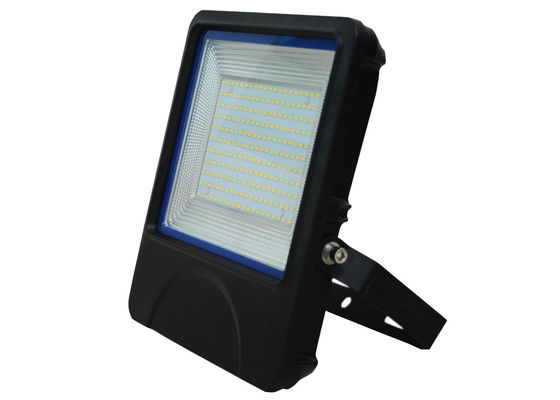

Neutral White 11000LM High Output Led Flood Lights 100W Black and Grey Housing
CL-TG005-100W 100W 11000LM LED Flood Lights Fixture Black and Grey Housing CRI＞80 PF＞0.95, IP66 Waterproof LED Flood Lamps 3 Years Warranty
Features:
1. The floodlight has high brightness and long life characteristics.
2. The voltage range is wide, applicable to the world.
3. Efficient driver design, it is more energy saving and environmental protection.
4. Design innovation, effective protection, beautiful and easy to assemble.
5. Special waterproof and other protective measure, the model reached IP65.
6. It is suitable for various outdoor lighting projects, such as parks, amusement parks, billboards and so on.
Specifications:
|
Part Number |
CL-TG005-100W |
Input Voltage |
AC85-265V |
|
Power |
100W |
Beam Angle |
120° |
|
Luminous Flux |
11000LM |
IP Rating |
IP66 |
|
LED |
200pcs Epistar SMD5730 |
Light Effect |
100LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
3 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Certification |
TUV CE/ RoHS/FCC/ SAA/ UL |
Driver |
Isolation Constant Current Dirver |
|
Lifespan |
30000Hrs |
Product Size |
325*275*53MM |
Series Items:
| No | Part Number | Input Voltage | Power | Lumen | PF | LED Light Source | Light Effect | CCT |
|---|---|---|---|---|---|---|---|---|
| 1 | CL-TG005-10W | 85-265VAC | 10W | 1100LM | 0.55 | 20pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 2 | CL-TG005-20W | 85-265VAC | 20W | 2200LM | 0.55 | 40pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 3 | CL-TG005-30W | 85-265VAC | 30W | 3300LM | 0.95 | 60pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 4 | CL-TG005-50W | 85-265VAC | 50W | 5500LM | 0.95 | 100pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 5 | CL-TG005-100W | 85-265VAC | 100W | 11000LM | 0.95 | 200pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 6 | CL-TG005-150W | 85-265VAC | 150W | 16500LM | 0.95 | 300pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
Note:
1. Color options: Warm White(2900-3200K), Neutral White(4000-4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Test Reports:
Packing Details:
N.W: 3.5KGs/piece G.W.: 5pcs/19KGs/Canton
Outer box(Carton): L380*W310*H380mm
Tag: outdoor led flood lamps, commercial flood lights
