Product Details:
|
| Product Name: | 200W LED Stadium Lights | Input Voltage: | AC85-277V |
|---|---|---|---|
| Light Source: | 280pcs 3030 | Luminous Flux: | 27000LM |
| Material: | Aluminum 1070 | Working Temperature: | -25℃~ +45℃ |
| Light Efficiency: | 140LM/W（±5%） | CRI: | >80 |
| Warranty: | 5 Years | IP Rating: | IP66 |
| Beam Angle: | 10°/ 25°/45°/60°/90° | Application: | High Pole Square Lighting |
| High Light: | outdoor led flood lamps,led garden flood lights |
||

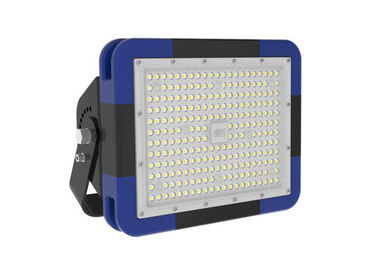

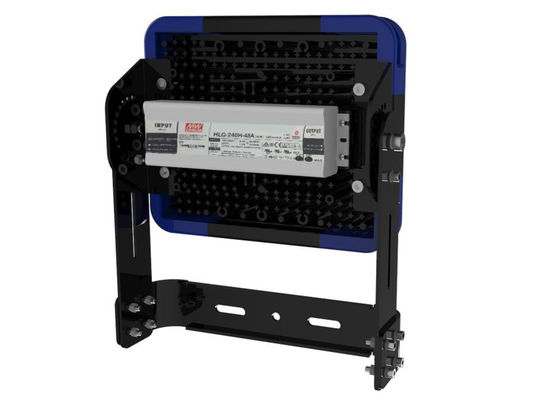

CL-SL-200W High Powered 200W LED Stadium Light with Meanwell Driver, 27000LM 200Watt LED Floodlight CRI＞80 PF＞0.95, IP66 Waterproof LED Stadium Lamps
Features:
1. Professional thermal structure can improve heat disspation.
2. The LED floodlight voltage range is AC85-277V, which can meet the wider voltage.
3. The beam angle from 10 to 90 degrees, wide provides a uniform and bright illumination in a wide range.
4. Vertical or horizontal installation, adjustable bracket allows to different angles.
5. IP66, waterproof and dustproof process are good, toughened transparent glass cover, resistant to various environmental factors.
6. Widely be used for high pole square lighting, stadium lighting, outdoor large stadium lighting, port, wharf, tower crane.
Specifications:
|
Part Number |
CL-SL-200W |
Input Voltage |
AC85-277V |
|
Power |
200W |
Beam Angle |
10°/25°/45°/60°/90° |
|
Luminous Flux |
27000LM |
IP Rating |
IP66 |
|
LED |
280pcs 3030 |
Light Effect |
140LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
5 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Certification |
ETL/TUV/CB/CE/ RoHS/ SAA |
Driver |
Meanwell Driver |
|
Lifespan |
50000Hrs |
Product Size |
300*250*120MM |
Series Items:
| No | Part Number | Input Voltage | Power | Lumen | PF | LED Light Source | Light Effect | CRI |
|---|---|---|---|---|---|---|---|---|
| 1 | CL-SL-200W | 85-277VAC | 200W | 27000LM | 0.95 | 280pcs 3030 | 140LM/W(±5%) | >80 |
| 2 | CL-SL-360W | 85-277VAC | 360W | 50400LM | 0.95 | 560pcs 3030 | 140LM/W(±5%) | >80 |
| 3 | CL-SL-540W | 85-277VAC | 540W | 75600LM | 0.95 | 840pcs 3030 | 140LM/W(±5%) | >80 |
| 4 | CL-SL-720W | 85-277VAC | 720W | 100800LM | 0.95 | 1120pcs 3030 | 140LM/W(±5%) | >80 |
| 5 | CL-SL-1080W | 85-277VAC | 1080W | 151200LM | 0.95 | 1680pcs 3030 | 140LM/W(±5%) | >80 |
| 6 | CL-SL-1440W | 85-277VAC | 1440W | 201600LM | 0.95 | 2240pcs 3030 | 140LM/W(±5%) | >80 |
Note:
1. Color options: Warm White(3000-3500K), Neutral White(4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Installation:
Packing Details:
N.W: 7.65KGs G.W.: 8.15KGs
Outer box(Carton): L427*W445*H215mm
