Product Details:
|
| Product Name: | 1440W LED Stadium Lights | Input Voltage: | AC85-277V |
|---|---|---|---|
| Light Source: | 2240pcs 3030 | Luminous Flux: | 201600LM |
| Material: | Aluminum 1070 | Working Temperature: | -25℃~ +50℃ |
| Light Efficiency: | 140LM/W（±5%） | CRI: | >80 |
| Warranty: | 5 Years | PF: | 0.95 |
| Life Span: | 50000Hrs | Certificates: | ETL TUV SAA CE RoHS |

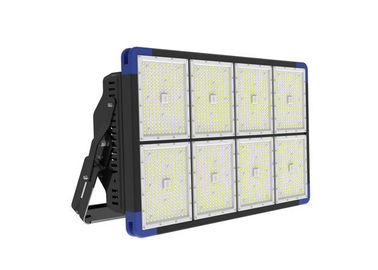

CL-SL-1440W IP66 Waterproof 5 Year Warranty 1440W LED Stadium Light, CRI＞80 PF＞0.95 201600LM 1440Watt LED Floodlight for Football Field
Features:
Specifications:
|
Part Number |
CL-SL-1440W |
Input Voltage |
AC85-277V |
|
Power |
1440W |
Beam Angle |
10°/25°/45°/60°/90° |
|
Luminous Flux |
201600LM |
IP Rating |
IP66 |
|
LED |
2240pcs 3030 |
Light Effect |
140LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
5 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Driver |
Meanwell Driver |
Lifespan |
50000Hrs |
|
Certification |
ETL/TUV/CB/CE/ RoHS/ SAA |
Product Size |
880*560*200MM |
Series Items:
| No | Part Number | LED Light Source | Input Voltage | Power | Lumen | Driver | Warranty |
|---|---|---|---|---|---|---|---|
| 1 | CL-SL-200W | 280pcs 3030 | 85-277VAC | 200W | 27000LM | Sosen/ Meanwell | 5 years |
| 2 | CL-SL-360W | 560pcs 3030 | 85-277VAC | 360W | 50400LM | Sosen/ Meanwell | 5 years |
| 3 | CL-SL-540W | 840pcs 3030 | 85-277VAC | 540W | 75600LM | Sosen/ Meanwell | 5 years |
| 4 | CL-SL-720W | 1120pcs 3030 | 85-277VAC | 720W | 100800LM | Sosen/ Meanwell | 5 years |
| 5 | CL-SL-1080W | 1680pcs 3030 | 85-277VAC | 1080W | 151200LM | Sosen/ Meanwell | 5 years |
| 6 | CL-SL-1440W | 2240pcs 3030 | 85-277VAC | 1440W | 201600LM | Sosen/ Meanwell | 5 years |
Note:
1. Color options: Warm White(3000-3500K), Neutral White(4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
IES Light Distribution Curve:
Beam angle: 10°
Beam angle: 25°
Beam angle: 45°
Beam angle: 60°
Beam angle: 90°
Packing Details:
N.W: 56KGs G.W.: 59.5KGs
Outer box(Carton): L1059*W774*H300mm
