| MOQ: | No MOQ |
| Standard Packaging: | Inner box and outer carton |
| Delivery Period: | 3~20days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 30000pcs per month |

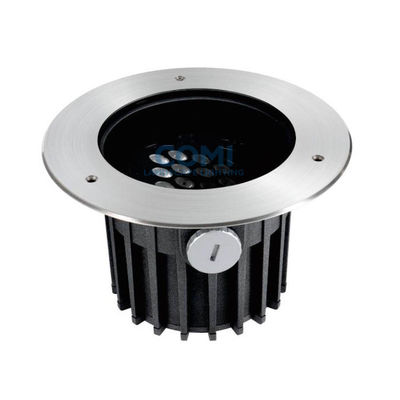

The adjustable beam direction 18pcs*2W/3W/4W XB2HF-series LED In-ground is designed for floor integration and offers various design possibilities in architectural illumination. Optional Dimmable, autom. colour change, DMX 512, DALI, 0/1-10 V controllable by COMI Lighting recommended power supply, driver,dimmer, RGB or RGBW controller, etc.
Features and Benefits:
▪ A simplicity of wider angle Adjustment according to the environment require to adjust
the angle of light .
▪ Optional honey comb louver for anti-glare and soft Light.
▪ Single color, RGB, RGBW color for options.
▪ Input Voltage 24 VDC or 110/240VAC
▪ 18pcs 2W Osram /Cree, 3W RGB or 4W RGBW Cree high power LED as its light source.
▪ SUS 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity=3560KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support ).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specifications:
| Housing |
12#Die-Casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
| Front Cover | Stainless Steel SUS 316L# |
| Glass | Step tempered glass.T=8mm |
| Glass Pressure Capacity | Area=3560KGs |
| Lens | Optical lens efficiency≥90% |
| LED | OSRAM LED, 350mA=1W, 700mA=3W, 3W(RGB), 4W(RGBW) |
| Gasket | Molding shaped silicone seal |
| Cable Gland | IP-68 PG-9 PVC |
| Driver | Mean Well LED Driver, Constant Current Output |
| Operating Temperature | -20˚C~40˚C |
| Electrical Connection | 0.5 m H05RN-F 2×1.0 mm² to open wires (Low Voltage) 0.5 m H05RN-F 3× 0.75 mm² to open wires (High Voltage) 0.5 m H05RN-F 4× 0.75 mm² to open wires (RGB) 0.5 m H05RN-F 5× 0.50 mm² to open wires (RGBW or DMX512 version) Note: H07RN-F 2/3/4/5×1.0mm² is available upon request. |
| Mounting Sleeve(Included) | ABS |
| Control Support | Triac, Optional PWM, 0/1-10V, DALI dimmable ,or DMX512 controllable support |
Technical Specifications:
| Item No. | Light Source | Lens Degree | Input Voltage |
Typical Operating
Current(mA)
|
Typical Power
Consumption(W)
|
Typical
Luminance (lm) |
IK Rate |
| XB2HFR1857 |
18×2W Single Color
|
10°, 25°, 40°, 60° |
24VDC
120/240Vac |
24V=1033
110V=235 240V=117 |
24V=37.6
110V=37.8 240V=37.8 |
Cool White=2660
Warm White=2246
|
10 |
| XB2HFR1818 |
18×3W
RGB 3-in-1 Full Color |
10°, 25°, 40°, 60° |
24VDC | 1620 | 52.8 | 1056 | 10 |
| XB2HFR1820 |
18×4W
RGBW 4-in-1 Full Color |
10°, 25°, 40°, 60° |
24VDC | 1783 | 56.6W | 1411 | 10 |
Notes:
1. DMX512 version for RGB and RGBW color is available.
2. Specification is subjected to change without prior notice.
|
|
