| MOQ: | NO MOQ |
| Standard Packaging: | 4pcs/Carton |
| Delivery Period: | 3~20days |
| Payment Method: | T/T, Western Union, MoneyGram, L/C |
| Supply Capacity: | 30000PCS/Month |

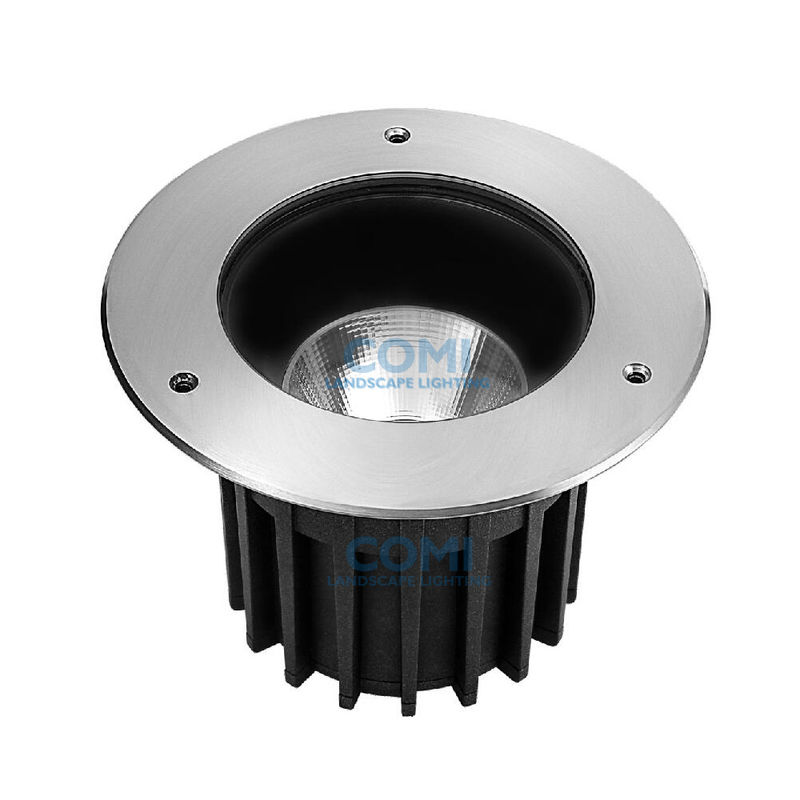

The COMI LANDSCAPE LIGHTING INGROUND LIGHT R2H-series adopts CREE/NICHIA COB LED as its light source which is designed for floor integration and offers because of its high light output various design possibilities in architectural illumination. Optional accessory honeycomb louver for anti-glare soft light output. Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 Dimming by COMI Lighting recommended driver, dimmer, or controller, etc.
Features and Benefits:
▪ Adopts 25W COB LED as light source with high luminance output.
▪ Reflector efficiency≥90%.
▪ Optional honey comb louver for anti-glare and soft Light.
▪ Input Voltage 24VDC or 110/240VAC.
▪ High light efficiency up to 110lm/W(cool white color)
▪ 316 stainless steel front ring and aluminum lamp housing.
▪ High quality Mean Well brand LED driver.
▪ Full area glass pressure capacity>2900KGs.
▪ TRIAC, PWM, 0/1-10V, DALI dimming support optional(Inquire separately).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2~5 Years warranty available.
Material Specifications:
| Housing |
12#Die-Casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
| Front Cover | Stainless Steel SUS 316L# |
| Light Window | Step tempered glass.T=8mm |
| Reflector | Optical reflector efficiency≥90% |
| LED | CREE or NICHIA COB LED |
| Glass Pressure Capacity | Full Area=2961KGs |
| Cable Gland | IP68 PG-9 |
| Gasket | Molding shaped seal |
| LED Driver | Mean Well Constant current driver |
| Operating Temperature | -20˚C~40˚C |
| Electrical Connection | 0.5 m H05RN-F 2x 1.0 mm² to open wires (Low Voltage) 0.5 m H05RN-F 3x 0.75 mm² to open wires (High Voltage) |
| Mounting Sleeve(Incl.) | ABS |
| Control Support(Optional) | Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 dimming support |
Technical Specifications:
| Item No. | Light Source | Lens Angle | Input Voltage |
Typical Operating
Current(mA)
|
Typical Power
Consumption(W)
|
Typical
Luminance (lm)
|
IK Rate |
| R2HER0125 |
1×25W
CREE COB
Single Color
|
15°, 24°,
36°, 60°
|
24VDC
120/240Vac
|
24V=1050
110V=233
240V=117
|
24V=25.2
110V=25.6
240V=25.6
|
Cool White=2631
Warm White=2237
|
09 |
Note: Specification is subjected to change without prior notice.
|
|
