| MOQ: | 5pieces |
| Standard Packaging: | 1piece/carton |
| Delivery Period: | 3-20days depends on order quantity |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 100000pcs per month |

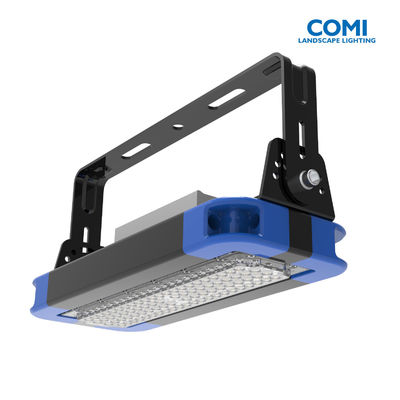

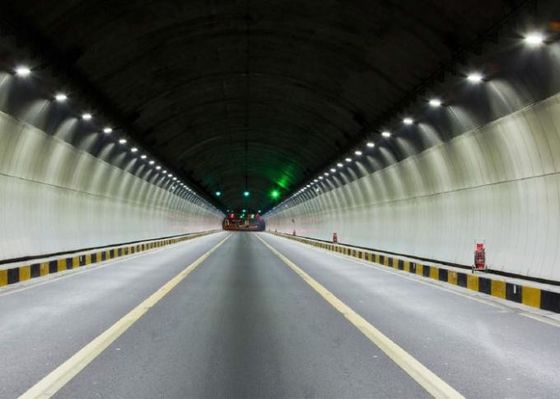

COMI Lighting's B7TA-Series is a modular design LED tunnel light. B7TA operates from AC85-277V and offers models with different rated power ranging from 50W to 600W. It adopts high quality and high PF Mean Well or Sosen brand driver enables the lighting fixture with high efficiency up to 140lm/W. This lighting fixture is easy installed by angle adjustable bracket. The design of 6063 aluminium lamp housing and IP66 ingress protection level allows this series to fit outdoor applications and widely used for lighting for tunnel court, sports field, stadium, football field, golf course, tower crane, ports, square, building pillars, bridge, billboard, courtyard, road, outdoor, garbed trees and etc.
Features and Benefits:
▪ Modular design for easy maintenance.
▪ Input Voltage AC85-277V,50/60Hz.
▪ Power Consumption:50W
▪ 84pcs Lumileds/Osram/Cree/Epistar 3030 chip as its light source.
▪ High light efficiency up to 140 lm/W.
▪ CRI: Ra>80.
▪ High quality Mean Well or Sosen brand LED Driver with high PF≥0.95.
▪ Anti-UV PC optics lens, transmittance rate> 94%.
▪ Beam angle options:10°/25°/45°/60°/90°/20*50°/30*70°/80*140°.
▪ Made of premium aluminium with good heat dissipation, compression and wear resistance.
▪ IP66 Waterproof rate for outdoor use.
▪ ETL, FCC,TUV, CE, ROHS,SAA,CB certificates.
▪ 5 Years warranty.
Material Specifications:
| Housing | 6063 Aluminium |
| Gasket | Double silicon-rubber rings |
| Lens | Premium anti-UV PC optics lens ,transmittance> 94%, Beam angle options: 10°/25°/45°/60°/90°/20*50°/30*70°/80*140°. |
| Cable Gland | Copper and nickel coated |
| LED | , Lumileds, Osram, Cree, Epistar 3030 High Power LED, CRI80+ |
| PCB | Excellent heat conductivity aluminium, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver | Mean Well or Sosen Brand Constant Current LED Driver, PF≥0.95 |
| Power Cable | 0.5Meter 3-core : Brown(L), Yellow(G), Blue(N) |
| Operating Temperature | -20℃~+50℃ |
| Installation | Aluminium Bracket (Angle Adjustable) |
Technical Specifications of 100W LED Tunnel Light / LED Flood Lighting:
|
Item Number
|
Power (W)
|
Input
Voltage (Vac) |
Light Source
|
Beam Angle
|
CCT(K)
|
CRI
(Ra) |
Luminous
Flux (lm)±5% |
PF
|
IP Rate
|
|
B7TA-50W
|
50W
|
85-277Vac,
50/60Hz |
84pcs
3030 LED |
15°, 25°, 45°,
60°, 90°, 20*50°, 30*70°, 80*140° |
2700-6500K
|
Ra≥80
|
7000lm
|
≥0.95
|
IP66
|
Note: Specifications are subjected to change without notice.
Dimension and Packaging Information for LED Tunnel Lights/ Flood Lights:
|
Item Number
|
Product Size
|
Package Size
|
N.W.
|
G.W.
|
Packaging
|
|
B7TA-50W
|
310*87*170mm
|
344*190*135mm
|
2.8KG
|
3.2KG
|
1piece/Carton
|
|
B7TA-100W
|
310*87*228mm
|
344*258*135mm
|
4.1KG
|
4.5KG
|
1piece/Carton
|
|
B7TA-150W
|
311*87*309mm
|
344*334*135mm
|
5.2KG
|
5.8KG
|
1piece/Carton
|
|
B7TA-200W
|
311*97*383mm
|
420*350*135mm
|
5.7KG
|
7.4KG
|
1piece/Carton
|
|
B7TA-250W
|
311*97*459mm
|
495*350*135mm
|
7.9KG
|
8.5KG
|
1piece/Carton
|
|
B7TA-300W
|
311*97*538mm
|
590*350*135mm
|
9.4KG
|
10.1KG
|
1piece/Carton
|
|
B7TA-400W
|
571*107*388mm
|
614*435*135mm
|
12.2KG
|
13KG
|
1piece/Carton
|
|
B7TA-500W
|
571*107*461mm
|
614*520*135mm
|
14.3KG
|
15.2KG
|
1piece/Carton
|
|
B7TA-600W
|
571*107*529mm
|
614*614*135mm
|
16.5KG
|
17.5KG
|
1piece/Carton
|
Product family Series of B7TA LED Flood Lights/ LED Tunnel Lights:
Light Distribution Curve for Different Beam Angle of B7TA LED Floodlights/ LED Tunnel Lighting:
Exploded View of 50W/100W/ 250W/ 300W/ 400W/ 500W/ 600W LED Tunnel Lights/ LED Flood Lights:
|
|
