Product Details:
|
| Item Type: | COB LED Soft Strip Light | Light Source: | COB LED, 528 Chips/meter |
|---|---|---|---|
| Cri (ra>): | 80,90 | Input Voltage(v): | DC24V |
| Power Consumption: | 10W/M | Color Temperature(cct): | 2700-7000K |
| Lamp Luminous Flux(lm): | 920-980/m | Working Lifetime(hour): | 50000 |
| Lamp Body Material: | Copper | Ip Rating: | IP20 |
| Working Temperature(℃): | -25 - 55 | Warranty: | 3 Years |
| Certification: | CE,RoHS,EMC | Application: | LANDSCAPE,HOTEL,Indoor Outdoor |
| Support Dimmer: | Yes | ||
| High Light: | led tape light,led linear strip light |
||

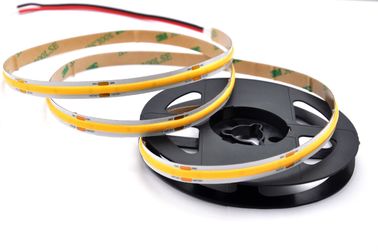

24VDC COB Flexible LED Strip Lights 10W/M Power Consumption Supporting Dimmer
Features:
1. COB Design, with more chips on PCB, seamless light output and no dark dot, and more even light output.
2. Up to 528 chips on 1 meter PCB, only 1.9mm space between chips.
3. Cuttable at every 45.45mm length.
4. Efficiency up to 105Lm/W.
5. CRI (Ra)>90 also available.
Technical Information:
| Item Number | Light Source |
Working Voltage |
CRI (Ra) |
Power Consuption |
Luminous Flux(lm/M) |
IP Rate |
| CL-FRCOBXX528-P1-CRI80 |
Soft COB Linear LED 528chips/meter |
24VDC |
Ra>80 |
10W/meter | 920-980LM/M | IP20 |
| CL-FRCOBXX528-P1-CRI90 |
Soft COB Linear LED 528chips/meter |
24VDC | Ra>90 | 10W/meter | 920-980LM/M | IP20 |
Dimension:
Installation:
Notes:
* The max running length is 6 meters, for over 6 meters please connect in parallel.
* Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
* Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications:
* Residential lighting, decorative lighting.
