Product Details:
|
Item Name: | Mini/Small Size Linear Wall Washer Light | Input Voltage: | 24VDC |
---|---|---|---|
Light Source: | 36pcs 1W LED | Color: | Single Color(1800-6500) Or RGB |
Power: | 36W | Size: | L1000*W36*T30MM |
Lumen: | 2520 LM | Material: | Aluminium |
IP Rate: | IP65 | CRI: | Ra>80 |

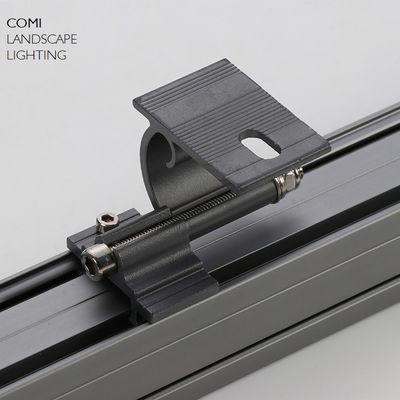

Warranty: | 3 Years | Installation: | By Angle Or Side-to-side Adjustable Bracket |
High Light: | color changing led wall washer,rgb led wall washer outdoor |
Housing | Aluminum die cast, powder coated or anodic oxidation grey treatment |
Bracket | Aluminum die cast |
Glass | Tempered glass. |
Reflector | Optical Reflector efficiency≥90% |
Cable gland | IP-68 PG-9 PVC |
Gasket | Glass and housing are silicone sealed |
LED | High Power 1W LED |
PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
Driver | Without Driver |
Length | Standard Length 1000mm, other lengths can be available |
Body Color | Natural oxidation, Grey |
Operating temperature | -20℃~40℃ |
Power cable |
Single Color: H05RN-F 2×1.0mm2
RGB: H05RN-F 4×0.5mm2
|
LED Wall Washer specifications
