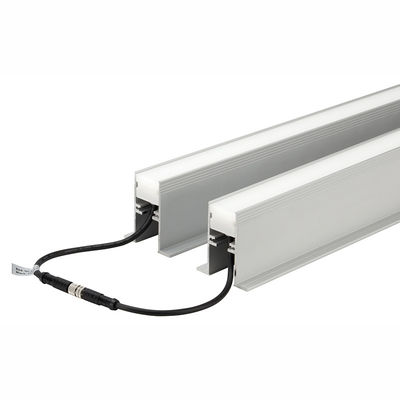

D2TLC24015 20W IP67 Seamless LED Linear Lighting With Aluminum Mounting Profile

D2TLC24015 20W IP67 Seamless LED Linear Lighting With Aluminum Mounting Profile

MOQ: 50pcs(mass order quantity), no MOQ For sample
Delivery Period: 5-20days depends on order quantity
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100000pcs/month
Detail Information
Place of Origin
CHINA
Brand Name
COMI LANDSCAPE LIGHTING
Certification
CE, ROHS
Model Number
D2TLC24015 ,D2TLC12010
Item Name:
IP67 Seamless Connection Linear Inground Lights
Working Voltage:
24VDC
Power:
20W/meter Max
Length:
Max 3Meters
Lamp Housing Meterail:
PMMA One Time Extrusion Profile
CRI:
Ra>80
Warranty:
3 Years
Minimum Order Quantity:
50pcs(mass order quantity), no MOQ For sample
Delivery Time:
5-20days depends on order quantity
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
100000pcs/month
High Light:

linear led lighting

,

recessed led linear light

Product Description

D2TLC24015 20W IP67 Seamless Connection Linear lights with Aluminum Mounting Profile





COMI LANDSCAPE LIGHTING's D2TLC-series IP67 protected opal encapsulated linear LED luminaire with High quality and homogeneous light over entire emission surface made of PMMA and aluminum for indoor and outdoor in-ground/wall recessed/Ceiling recessed installation or surface mounting. Consisting of LED linear luminaire and mounting aluminum profile. Can be lined up optically and mechanically.Also suitable for installation into roads and parking lots. It can be NOT only used as inground light, but also can be used as ceiling recessed linear light or wall recessed linear light, or surface mounting linear lighting.

Features and Benefits:
▪ High quality and homogeneous light over entire emission surface and dots free.
▪ PMMA one-time extrusion LED profile, length up to 3meters max.
▪ Low voltage 24VDC working voltage.
▪ Color: single color, RGB, or RGBW.
▪ Can be seamless connection: lined up optically and mechanically.
▪ Maximum stand weight: 30kN
▪ The inner strip light or light bar can be customized made, advised max 20W/meter.
▪ Basic CRI80+ (CRI90 or CRI95+ are available).
▪ Various installation methods:
(1) Inground/wall/Ceiling recessed installation or surface mounting.
(2) Two directional installation methods:


aluminum profile provides two directional installation methods
▪ One end or two ends bottom Output cable( to Open wires, or IP67 connectors)
▪ Fully PWM, 0/1-10V, DALI dimmable support ( DMX control is available upon request).
▪ IP67 suitable for indoor or outdoor.
▪ 2 Years warranty.

COMI Landscape lighting CE ROHS Dimmable IP67 symbols



Material Specifications

LED Linear Profile PMMA one time extrusion profile, maximum can be 3meter length.
Customized length is available on request.
Light Window/ Diffuser Thick Optical PMMA (T=10mm), efficiency≥70%.
One time extrusion with linear profile
Pressure capacity Maximum stand weight: 30kN
Cable Gland Mould injection IP68 Plastic
Radiation Plate Aluminum
Mounting Profile(incl.) Anodized or powder coated 6063 Aluminum profile.
Customized length is available on request.
End Caps (1)PC plug for LED Linear profile.
(2)PC end cap for aluminum profile.(NOT included for basic product, please order seperately).
Electrical Connection ▪ 1x cable 0.5meters H05RN-F 2x1.0mm² to open wires or Waterproof connector (for Single color)
▪ 1x cable 0.5meters H05RN-F 4x0.75mm² to open wires or Waterproof connector (for RGB)
▪ 1x cable 0.5meters H05RN-F 5x0.75mm² to open wires or Waterproof connector(for RGBW)
Dimmable Support PWM, 0/1-10V, DALI



Technical Specificaitons

Item Number
Length
(mm)
Light Source
CRI(Ra)
(White color)
Lens
Selected Lens
Degree (Θ1/2)
Input Voltage
(Vdc)
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)
IP
Rated
D2TLC12010
500
120pcs SMD LED
(Single Color)
Ra>80
-
120°
24VDC
416
10
Cool white=610
Warm white=488
IP67
D2TLC24020
1000
120pcs SMD LED
(Single Color)
Ra>80
-
120°
24VDC
833
20
Cool white=1220
Warm white=976
IP67


Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.)
2. RGB, or RGBW or DMX RGB is available upon request.
3. Length can be 300mm, 500mm, 600mm,1000mm,1200mm,1500mm and etc.

4. Specifications are subjected to change without notice.





Family Products
