Product Details:
|
| Features: | 1. Super Slim LED Linear Light With 24V Power Track; 2. Endless Extends Without Dark Area | Linear Light Size: | L*W13.5*H8.3MM |
|---|---|---|---|
| Standard Length For Linear Light: | 300mm (4.5W, 50-70lm/w) | Track Linear: | 2-type Track Linear Profile For Option:(1) W13.5*8.3,MM; (2) W19*H16.7MM |
| Dimmable Or NOT?: | Yes, PWM Dimming Support | Color Rendering: | Ra>80, >90 |
| Color Or CCT: | 2500K/2700K/3000K/3500K/4000K/6000K | Mounting Way: | Track Profile Surface Mounting, Or Recessed Mounting |
| Operating Temperature: | -20~+45°C | Customize Made Support Or NOT?: | Different Length Available Upon Request |
| High Light: | led linear lamp,linear led lighting |
||

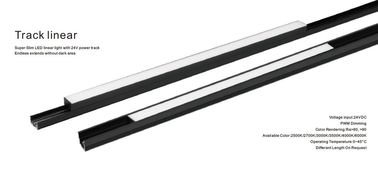

Super Slim LED Linear Lamp , Modern Linear Lighting PWM Dimming 50 - 70LM/W
The critical component - LED light source for the lighting fixture is from world wide well-known Brand: OSRAM(Germany),CREE/ BRIDGELUX(USA), SHARP/ CITIZEN/ NICHIA(JAPAN), EPISTAR/ HARVATEK/EDISON(Taiwan). Moreover, we also have the completed and up to standard testing equipments, regarding more information/details for the testing equipment, all products have been passed the procedure of standard testing before delivery, in the meanwhile, our products mostly have been certified by CE, LVD, IP, RoHs, cETLus, SAA and C-Tick. Also, our manufacturing factory have passed ISO9001-2008 certification.
CL-TL03-300 Track Linear Light System is a 24VDC operating voltage 50-70LM/W PWM Dimming Super Slim LED linear light with 24V power track, it is an excellent and Special design for Display, Cabinet and Furniture lighting Easy for installation and replacement.
| Model | Working Voltage |
Dimension (mm): L |
CRI | Power | Light Efficiency | Dimming |
| CL-TL03-300 | 24VDC | 300MM | Ra>80, Ra>90 | 4.5W | 50-70lm/W | PWM dimming support |
Notes:
1. Length of linear light and track profile can be customized made.
2. The lighting can be track linear, and mini track spotlight, or mini track spot module.
