Product Details:
|
| Item Name: | Mini Track Spot With Power Track | Power: | 1.5W And 2W For Options |
|---|---|---|---|
| Dimmable Or NOT?: | PWM Dimming Support | Lamp Body Size: | Dia 19*L30mm (1.5W), Dia.19*L40mm(2W) |
| Power Track: | 2 Types For Options: W13.5*H8.3mm And W19*H16.65mm | Beam Angle: | 15°, 30°, 50° |
| Light Efficiency: | 50-60LM/W | CRI: | Optional Ra>80 And Ra>90 |
| CCT: | 2500K/2700K/3000K/3500K/4000K/6000K | Installation: | Recessed Mounting Or Surface Mounting |
| Operating Temperature: | -20~+45˚C | Warranty: | 5 Years |
| High Light: | led linear lamp,linear led lighting |
||

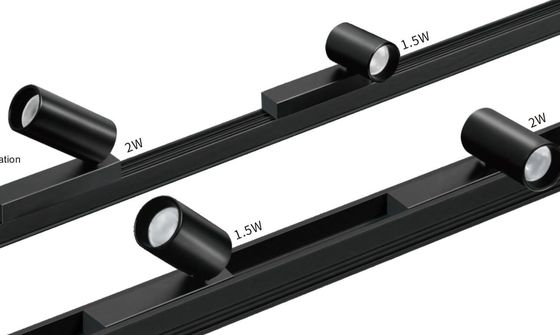

1.5W 2W Single Small LED Spotlights Aluminum Material With 24VDC Power Track
Adhere to "Product Quality is Life" belief, COMI Lighting maufactures products comply with quality management system: ISO9001:2008 Quality management system and COMI Lighting has been improving and maintaning quality management system continue to operate effectively.
COMI Lighitng outdoor and underwater products are subjected to extensive sprinkling and underwater tests after manufacturing. Thus we can guarantee the IP classification of each single product.
CL-TS-SPOT Track spot is a 24VDC operating voltage 50-60LM/W PWM Dimming mini track spotlight with 24VDC power track, it is easy for installation and replacement by plug into the track system,Suitable for furniture and showcase application.
| Model | Working Voltage | Power |
Beam angle |
CRI | Light Efficiency | Dimming |
| CL-TS-SPOT-1.5W | 24VDC | 1.5W | 15/30/50 | Ra>80, Ra>90 | 50-60lm/W | PWM dimming support |
| CL-TS-SPOT-2W | 24VDC | 2W | 15/30/50 | Ra>80, Ra>90 | 50-60lm/W | PWM dimming support |
Notes:
1. Length of linear track profile can be customized made.

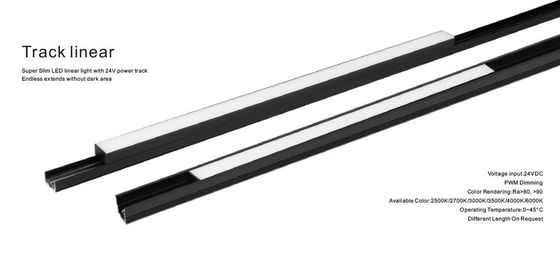

2. The lighting can be track linear, and mini track spotlight, or mini track spot module.
CL-TS-SPOT Track spot Light Distribution Curve:
CL-TS-SPOT Track spot Light Power track type and Dimension(Units:mm)
