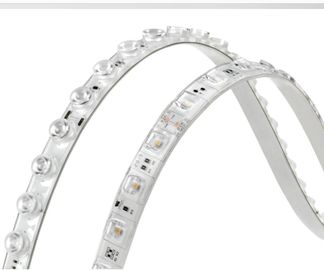

24VDC Symmetrical / Asymmetrical LED Linear Lighting Flexible LED Strip
The COMI Landscape Lighting 6FP-series wall washer is IP67 rated design high power flexible LED strips.Not only can be used as IP67 flexible LED strips singly , but also can be mounted into aluminum profile kit with smart accessories used as rigid linear wall washer lighting. Soft and bendable design makes it ideal for curved surface mounting for the illumination of large surfaces, e.g. buildings or walls in outdoor areas. They are also suitable for ambient lighting in indoor applications.
Features and Benefits:
▪ Sealed with fully transparent and waterproof materials.
▪ Flexible strip design (Soft and bendable) ideal for curved surface mounting.
▪ Optional symmetrical lens (20 °or 30°) and asymmetrical lens(120° x 60°).
▪ Can be cuttable and re-connected by smart accessories:
(1)symmetric type: min cutting length 166.6mm(7LEDs);
(2)Asymmetric type: min cutting length 166.6mm(5LEDs).
▪ Optional aluminum profile kit, included: Aluminum profile/PC cover/end caps/angle adjustable brackets and connectors.
▪ High power 0.5W Nichia LED as its light source.
▪ CRI: Ra>80
▪ LED Quantity: 42 pcs/m (symmetric type), 30pcs/m(asymmetric type).
▪ 24VDC working and 20W/meter max.
▪ 108 LM/W for symmetric type and 80LM/W asymmetric type.
▪ Maximum 10 meters per continous run length.
▪ Lighting distance more than 3meters.
▪ IP67 rated.
▪ 3 Years warranty.
Warning:
DO NOT submerse into water to use, though the product is IP67 rated design.
Technical Specifications:
|
Item No.
|
Length
|
Light Source
|
CRI
|
Beam
Angle |
Input Voltage |
Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
Light Efficiency |
IP
Rate |
|
B6FP02101
(Symmetric) |
500mm
|
21×0.5W Nichia
Single colour |
Ra≥80
|
20° ,30°
|
24VDC
|
416
|
Max. 10W
|
Cool white=1193
Warm white=1085 |
110LM/W
|
IP67
|
|
B6FP04201
(Symmetric) |
1000mm
|
42pcs Nichia
Single colour |
Ra≥80
|
20° ,30°
|
24VDC
|
832
|
Max. 20W
|
Cool white=2386
Warm white=2160 |
108LM/W
|
IP67
|
|
B6FP21001
(Symmetric) |
5000mm
|
210pcs Nichia
Single colour |
Ra≥80
|
20° ,30°
|
24VDC
|
4160
|
Max. 100W
|
Cool white=11661
Warm white=10687 |
108LM/W
|
IP67
|
|
C6FP1501
(Asymmetric) |
500mm
|
15pcs Nichia
Single colour |
Ra≥80
|
120°×60°
|
24VDC
|
416
|
Max. 10W
|
Cool white=863.5
Warm white=831 |
83LM/W
|
IP67
|
|
C6FP03001
(Asymmetric) |
1000mm
|
30pcs Nichia
Single colour |
Ra≥80
|
120°×60°
|
24VDC
|
832
|
Max. 20W
|
Cool white=1727
Warm white=1602 |
80LM/W
|
IP67
|
|
C6FP15001
(Asymmetric) |
5000mm
|
150pcs Nichia
Single colour |
Ra≥80
|
120°×60°
|
24VDC
|
4160
|
Max. 100W
|
Cool white=8635
Warm white=8010 |
80LM/W
|
IP67
|
Note:
1. CCT(K) (±5%) : 2500K, 2700K, 3000K, 4000K, 5000K, 6000K.
2. Length available in: 500mm, 1000mm,2000mm,3000mm,4000mm,5000mm,...,max.10000mm , or other customized length.
3. When the length more than 5meters, it is advised to power feed to 2 ends of the wall washing flexible LED Strip Light.
4. Optional aluminium profile kit (included: aluminium profile, PC cover, angle adjustable bracket, connectors), please order separately.
5. Specifications and availability are subjected to change without notice.
|
|
