PRODUCTS DETAILS

Home > Products >

24VDC Single RGB RGBW Outside Spot Lights With Ground Spike

Products

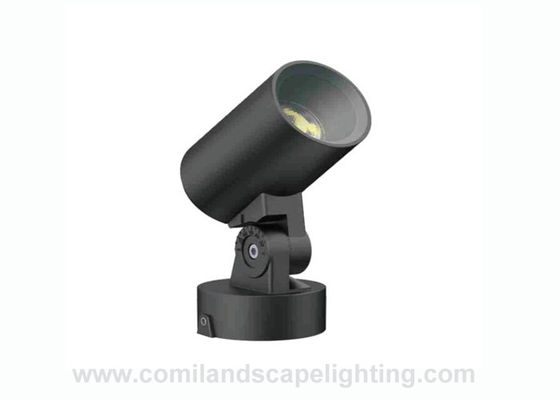

24VDC Single RGB RGBW Outside Spot Lights With Ground Spike

Name: 24VDC Single RGB RGBW Outside Spot Lights With Ground Spike
Brand: COMI LANDSCAPE LIGHTING
SKU: B3QAB0358, B3QAB0318, B3QAB0110
Rating: 4.9 (174 reviews)

MOQ:	1unit
Standard Packaging:	1unit/box, 8pcs/carton
Delivery Period:	5~18days
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	100,000PCS/Month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong China

Brand Name

COMI LANDSCAPE LIGHTING

Certification

CE, ROHS

Model Number

B3QAB0358, B3QAB0318, B3QAB0110

Product Name:

IP65 3*3W Or 4W Led Outdoor Landscape And Garden Spot Light

Input Voltage(v):

24VDC, AC100-240V

Led Light Source:

3pcs 3W Or 4W CREE High Power LED, Or 1piece CREE COB LED

Cri (ra>):

Lamp Luminous Efficiency(lm/w):

70~80

Color Temperature(cct):

Warm White,Cool White,Pure White,RGBW,2200-7000K

Beam Angle(°):

15/30/45/60

Ip Rating:

IP65

Material:

Aluminum+Tempered Glass

Working Temperature(℃):

-20 - 40

Working Lifetime(hour):

35000

Warranty:

3 Years

Application:

Garden, Garden Square Park, LANDSCAPE, Buildings, Garden/ Pathway/ Building/ Street

Minimum Order Quantity:

1unit

Packaging Details:

1unit/box, 8pcs/carton

Delivery Time:

5~18days

Payment Terms:

T/T, Western Union, L/C

Supply Ability:

100,000PCS/Month

Highlight:

RGBW Outside Spot Lights

24VDC Outside Spot Lights

Ground Spike Outdoor Led Spotlight

Product Description

24VDC or 110~120VAC, or 220~240Vac 3x3W single color, RGB or 3*4W RGBW Hidden Power Cable type New Architectural and Landscape Spot Light with ground spike or tree strap

Features:

1.Independent intellectual property design and the products are full senses of elegance, fashion, art.

2. 24VDC, 110~120VAC, or 220~240Vac input voltage for options.

3. 3*3W single color or RGB, or 3*4W RGBW, or 1*10W CREE LED with high lumen output and excellent color consistency;

4. CRI>80Ra (>90Ra is available)

5. Various optional accessories: multidirectional base , ABS ground spike, tree strap and 6063 power coated aluminum pole and etc. enables the product can be with different installation modes to meet outdoor project requirements.
6.Ultra clear and highly strengthen 4mm tempered glass cover and with 90-95% high luminous efficacy.
7.Environmental friendly highly strengthen ADC 12# die-casting aluminum housing with Tiger powder coated spraying process,reach over 1000 hours in salt spray test .
8.Use top quality and world-well known brand driver to guarantee the stability of the product.
7. Support DMX512, 1-10V, DALI, TRIAC or PWM dimming control.

Materials Specifications:

Housing	12 Die-casting powder coated aluminum, T=50-55μm. Adhesion of ISO class 1/ASTM class 4B
Front Cover	12 Die-casting powder coated aluminum, T=50-55μm. Adhesion of ISO class 1/ASTM class 4B
Lens	Optical lens, efficiency≥90%
Gasket	Molding shaped silicone double seal
LED	High power LED or COB LED, Osram/CREE LED
PCB	Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
Driver	Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output RGBW 4-in-1=4 -circuit output
Operating temperature	-20℃~40℃
Power cable	H05RN-F 2X1.0mm^2, L=2m (low voltage) H05RN-F 3X1.0mm^2, L=2m (high voltage) H05RN-F 4X0.75mm^2, L=2m (for RGB) H05RN-F 5X0.5mm^2, L=2m (for RGBW)
Mounting base(Optional)	Powder coated die-casting aluminum
Spike(Included)	ABS
Tree Strap (optional)	stainless steel strap
Extensive pole (optional)	Aluminum

Technical Specifications:

Item Number	Control Mode	Light Source	Light Color	Input Voltage	Beam Angle	Power	Luminous Flux(LM)	IK Rate
B3QAB0358	ON/OFF	3×3W CREE XP-E2 LED	Single color	24VDC	6°, 12°, 25°,40°, 60°	6.8W	510	IK06
B3QAB0358	ON/OFF	3×3W CREE XP-E2 LED	Single color	220/240VAC	6°, 12°, 25°,40°, 60°	7.2W	530	IK06
B3QAB0318	PWM	3×3W RGB LED	RGB 3-in-1	24VDC	15°, 30°, 45°, 60°	9.4W	318	IK06
B3QAB0318DMX	DMX512	3×3W RGB LED	RGB 3-in-1	24VDC	15°, 30°, 45°, 60°	9.4W	318	IK06
B3QAB0304DMX	DMX512	3×4W RGBW LED	RGBW 4-in-1	24VDC	15°, 30°, 45°, 60°	12.6W	480	IK06
B3QAB0110	ON/OFF	1×8W CREE COB LED	Single color	24VDC	18°,24°, 38°, 60°	7W	521	IK06
B3QAB0110	ON/OFF	1×8W CREE COB LED	Single color	220/240VAC	18°,24°, 38°, 60°	7W	521	IK06
B3QAB0108DMX	DMX512	1×8W RGBW LED	RGBW 4-in-1	24VDC	15°,30°, 45°, 60°	8.6W	410	IK06

Notes:

1. 110-120VAC is avaibale.

2. Specifications are subjected to change without notice.

Various optional extensive accessories:

24VDC Single RGB RGBW Outside Spot Lights With Ground Spike 0

Installation Demo for Architectural and Landscape Spot and flood Lights

24VDC Single RGB RGBW Outside Spot Lights With Ground Spike 1
