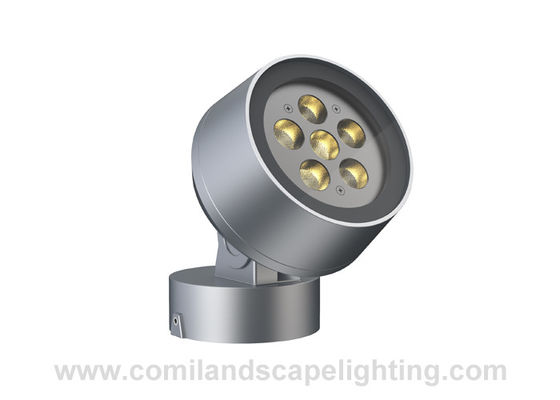

24VDC or 110~120VAC, or 220~240Vac 6x3W single color, RGB or 6*4W RGBW or 1*20W CREE COB LED Hidden Power Cable type New Architectural / Landscape/ Garden Spot Light with Round Base
Features:
1.Independent intellectual property design and the products are full senses of elegance, fashion, art.
2. 24VDC, 110~120VAC, or 220~240Vac input voltage for options.
3. 6*3W single color or RGB, or 6*4W RGBW, or 1*20W CREE LED with high lumen output and excellent color consistency;
4. CRI>80Ra (>90Ra is available)
5. Body color: Silver grey and Black for options
6. Various optional accessories: multidirectional base , ABS ground spike, tree strap and 6063 power coated aluminum pole and etc. enables the product can be with different installation modes to meet outdoor project requirements.
7.Ultra clear and highly strengthen 4mm tempered glass cover and with 90-95% high luminous efficacy.
8.Environmental friendly highly strengthen ADC 12# die-casting aluminum housing with Tiger powder coated spraying process,reach over 1000 hours in salt spray test .
9.Use top quality and world-well known brand driver to guarantee the stability of the product.
10. Support DMX512, 1-10V, DALI, TRIAC or PWM dimming control.
Materials Specifications:
| Housing | 12 Die-casting powder coated aluminum, T=50-55μm. |
| Front Cover | 12 Die-casting powder coated aluminum, T=50-55μm. |
| Lens | Optical lens, efficiency≥90% |
| Gasket | Molding shaped silicone double seal |
| LED | High power LED or COB LED, Osram/CREE LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver | Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output RGBW 4-in-1=4 -circuit output |
| Operating temperature | -20℃~40℃ |
| Power cable | H05RN-F 2X1.0mm^2, L=2m (low voltage) H05RN-F 3X1.0mm^2, L=2m (high voltage) H05RN-F 4X0.75mm^2, L=2m (for RGB) H05RN-F 5X0.5mm^2, L=2m (for RGBW) |
| Mounting base(included) | Powder coated die-casting aluminum |
| Spike(optional) | ABS |
| Tree Strap (optional) | stainless steel strap |
| Extensive pole (optional) | Aluminum |
Technical Specifications:
| Item Number | Control Mode | Light Source | Light Color | Input Voltage | Beam Angle | Power | Luminous Flux(LM) | IK Rate |
| B3QEM0358 | ON/OFF | 6×3W CREE XP-E2 LED | Single color | 24VDC | 6°, 12°, 25°,40°, 60° | 16.8W | 1350 | IK06 |
| B3QEM0358 | ON/OFF | 6×3W CREE XP-E2 LED | Single color | 220/240VAC | 6°, 12°, 25°,40°, 60° | 17.2W | 1320 | IK06 |
| B3QEM0318 | PWM | 6×3W RGB LED | RGB 3-in-1 | 24VDC | 15°, 30°, 45°, 60° | 18W | 678 | IK06 |
| B3QEM0318DMX | DMX512 | 6×3W RGB LED | RGB 3-in-1 | 24VDC | 15°, 30°, 45°, 60° | 18W | 678 | IK06 |
| B3QEM0320DMX | DMX512 | 6×4W RGBW LED | RGBW 4-in-1 | 24VDC | 15°, 30°, 45°, 60° | 24W | 825 | IK06 |
| B3QEM0120 | ON/OFF | 1×20W CREE COB LED | Single color | 24VDC | 18°,24°, 38°, 60° | 18.2W | 1365 | IK06 |
| B3QEM0120 | ON/OFF | 1×20W CREE COB LED | Single color | 220/240VAC | 18°,24°, 38°, 60° | 18.6W | 1371 | IK06 |
Notes:
1. 110-120VAC is avaibale.
2. Specifications are subjected to change without notice.
Various optional extensive accessories:
Installation Demo for Architectural and Landscape Spot and flood Lights
