| MOQ: | 1 psc |
| Standard Packaging: | 1piece/Box |
| Delivery Period: | 5-8 working days |
| Payment Method: | L/C, D/A, T/T, Western Union |
| Supply Capacity: | 100,000PCS/MONTH |

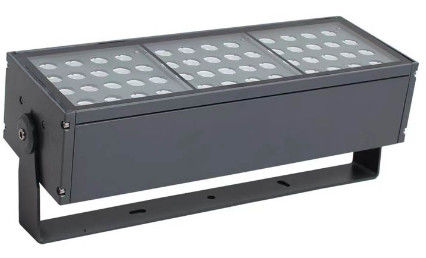

COMI Landscape Lighting's B3XQ is a series of modular structure architectural and Landscape Spot light. B3XQ offers models with different rated power ranging from 30W to 180W, and available in mon color or RGB color . Various beam angles are available. Ultral small beam angle (3/5/10degree) enables the lighting fixture can be long projecting distance. With angle adjustable bracket makes it to be easy installation and provides various mounting methods (ground mount, wall mount and ceiling mount). IP66 ingress protection level allows B3XQ to fit outdoor applications.
Features and Benefits:
▪ 27pcs(Mono) or 54pcs(RGB) 3W Osram or Cree LED as its light source.
▪ 24VDC(RGB) or 85-265VAC input(Single color);
▪ Color: 2700K/3000/4000K/5000K/6000K/Red/Green/Blue/RGB (3-in-1)/RGBW(4-in-1).
▪ Standard 80-100LM/W, High light efficiency type can be up to 120lm/W.
▪ Beam angle options: 5°, 10°, 15°, 25°, 40°, 60°, 120° , asymmetrical lens (inquire separately).
▪ Ultra small beam angle 3°, 5°, 10° for high/long projecting distance.
▪ Optional ON/OFF, PWM, DALI, 0/1-10V, TRIAC or DMX512 control methods.
▪ High quality Mean Well or Sosen brand LED Driver with high PF≥0.95.
▪ High efficiency and high-quality Anti-UV PC optics lens, transmittance rate>94%.
▪ Finished: Dark Grey(Standard) or black.
▪ Radiator made of Cold forging high thermal conductivity aluminum.
▪ Bracket can be Angle adjustable.
▪ Various mounting methods: ground mount, wall mount and ceiling mount.
▪ Internal waterproof LED driver.
▪ IP66 Waterproof rate for outdoor use.
▪ Customize made is available.
▪ CE, ROHS certificates.
▪ 3 Years warranty.
Technical Specifications:
|
Item Number |
Color |
Beam Angle |
Light Source |
Input Voltage |
Power |
Luminous Flux (LM) |
IK Rate |
|
B3XQT2703 |
Single Color |
5°, 10°, 15°, 25°, 40°, 60°, 120°
|
27PCS*3W CREE LED |
220-240VAC |
100W |
Cool White=8005LM Warm White=6801LM |
08 |
|
B3XQT5418 |
RGB 3-in-1 Full Color |
5°, 10°, 15°, 25°, 40°, 60°, 120°
|
54PCS*3W RGB 3-in-1 LED |
24VDC |
108W (or 72W) |
720LM |
08 |
Notes:
1. Color available: 2200-6500K (warm white, natural white, cool white), Red, Blue, Green, Yellow, RGB, RGBW color.
2. Low voltage 24VDC RGB or RGBW are available, please inquire RGB or RGBW separately.
3. Input voltage is available in 85-265VAC,, or 110-120VAC.
4. Control methods options: ON/FF, PWM or DMX512.
