| MOQ: | 1 psc |
| Standard Packaging: | 1piece/Box |
| Delivery Period: | 5-8 working days |
| Payment Method: | L/C, D/A, T/T, Western Union |
| Supply Capacity: | 100,000PCS/MONTH |

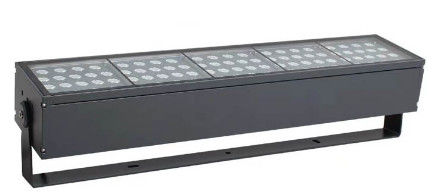

COMI Landscape Lighting's B3XQ is a series of modular structure architectural and Landscape Spot light. B3XQ offers models with different rated power ranging from 30W to 180W, and available in mon color or RGB color . Various beam angles are available. Ultral small beam angle (3/5/10degree) enables the lighting fixture can be long projecting distance. With angle adjustable bracket makes it to be easy installation and provides various mounting methods (ground mount, wall mount and ceiling mount). IP66 ingress protection level allows B3XQ to fit outdoor applications.
Features and Benefits:
▪ 90pcs 3W 3-in-1 RGB LED, or 45pcs 3W Mono Osram or Cree LED as its light source.
▪ 24VDC(RGB) or 85-265VAC input(Single color, 110-120V or 220-240V available);
▪ Color: 2700K/3000/4000K/5000K/6000K/Red/Green/Blue/RGB (3-in-1)/RGBW(4-in-1).
▪ Standard 80-100LM/W, High light efficiency type can be up to 120lm/W.
▪ Beam angle 5°, 10°, 15°, 25°, 40°, 60°, 120° , asymmetrical lens for options.
▪ Ultra small beam angle 5°, 10° for high/long projecting distance.
▪ Optional ON/OFF, PWM, DALI, 0/1-10V, TRIAC or DMX512 control methods.
▪ High quality Mean Well or Sosen brand LED Driver with high PF≥0.95.
▪ High efficiency and high-quality Anti-UV PC optics lens, transmittance rate>94%.
▪ Finished: Dark Grey(Standard) or black.
▪ Radiator made of Cold forging high thermal conductivity aluminum.
▪ Bracket can be Angle adjustable.
▪ Various mounting methods: ground mount, wall mount and ceiling mount.
▪ Internal waterproof LED driver.
▪ IP66 Waterproof rate for outdoor use.
▪ Customize made is available.
▪ CE, ROHS certificates.
▪ 3 Years warranty.
Technical Specifications:
| Item Number | Color |
Beam Angle |
Light Source | Input Voltage | Power | Luminous Flux (LM) |
IK Rate |
| B3XQF4503 | Single Color |
5°, 10°, 15°, 25°, 40°, 60°, 120°
|
45PCS*3W CREE LED |
220-240VAC | 135W |
Cool White=11472LM Warm White=9735LM |
08 |
| B3XQF9018 |
RGB 3-in-1 Full Color |
5°, 10°, 15°, 25°, 40°, 60°, 120°
|
90PCS*3W RGB 3-in-1 LED |
24VDC | 150W | 1001LM | 08 |
Notes:
|
|
