| MOQ: | 1 psc |
| Standard Packaging: | 1piece/Box |
| Delivery Period: | 5-8 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100,000PCS/MONTH |
3QB-series product is a high power LED architectural & landscape spot light with small size which is discreet and place the focus on the light itself and particularly advantageous in compact room situations. This 3QB-series product not only provides standard arm with optional round base or with ground spike, but also offers extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications. single color, RGB or RGBW color are available. The product is optional non-dimmable, PWM, 0/1-10V, DALI, TRIAC dimmable or DMX512 support. IP65 designed is ideal solutions for outdoor applications.
Features and benefits:
▪ Small luminaire is discreet and place the focus on the light itself which particularly advantageous in compact room situations.
▪ Standard concealed cable type round base or spike:
(1) Round base for wall, ground or ceiling surface mounting.
(2) Ground spike for ground mounting.
▪ Light distributions: narrow spot, spot, flood, wide flood, extra wide flood or wall-wash.
▪ Optional light accessories for soft light: honey comb louver, honeycomb glass and filter.
▪ Optional lamp body color: silver grey and black.
▪ With optional other extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications.
(1) Screw fixed pole mounting Bracket;
(2) Mounting Bracket with stainless steel tree strap;

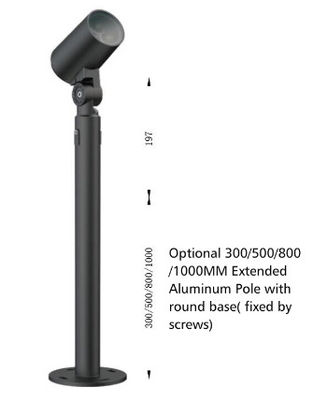

(3) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or ground spike.
▪ Multiple direction adjustable for projection direction.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ Die-cast aluminum lamp housing and spike.
▪ Optional 0/1-10V, DALI, DMX 512, TRIAC dimming or controllable support.
▪ IP65 grade, Dust-tight and water jet-proof.
▪ 3 years warranty.
Technical Specifications:
| Item Number |
Control
Method
|
Light Source | CRI |
Optional Beam
Angle(°)
|
Input Voltage | Typical Power |
Typical Luminous
Flux(lm) |
IK
Rate |
| B3QBB0458 | ON/OFF |
4×3W
CREE LED
Single Color
|
Ra>80 |
6°, 12°,
25°,40°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=11.6
110V=12.8
240V=12.8
|
Cool White=861
Warm White=696 |
IK06 |
| B3QBB0418 | PWM |
4×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 12.6 | 278 | IK06 |
| B3QBB0418DMX | DMX |
4×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 12.6 | 278 | IK06 |
| B3QBB0420 | PWM |
4×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 16.5 | 398 | IK06 |
| B3QBB0420DMX | DMX |
4×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 16.5 | 398 | IK06 |
| B3QBB0115 | ON/FF |
1×15W
CREE COB LED
Single Color
|
Ra>80 |
18°, 24°,
38°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=15.2
110V=15.2
240V=15.2
|
Cool White=881
Warm White=706 |
IK06 |
Notes:
1. Optional color or Color Temperature for single color:
Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green and others.
2. 12VDC working voltage is available;
3. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
4. Specifications are subjected to change without notice.
Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:
Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:
(2) Round base: for ground/wall/ceiling surface mounting.
(3) Extended pole(300/500/800mm) with round base (fixed by screws)
(4)(5) Ground spike: ground mounting.
(6) Extended pole(300/500/800mm) with ground spike
(7) Mounting Bracket with stainless steel tree strap: for mounted on tree.
(8) Screw fixed pole mounting Bracket: mounted on pole
video
video
|
|
| MOQ: | 1 psc |
| Standard Packaging: | 1piece/Box |
| Delivery Period: | 5-8 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100,000PCS/MONTH |
3QB-series product is a high power LED architectural & landscape spot light with small size which is discreet and place the focus on the light itself and particularly advantageous in compact room situations. This 3QB-series product not only provides standard arm with optional round base or with ground spike, but also offers extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications. single color, RGB or RGBW color are available. The product is optional non-dimmable, PWM, 0/1-10V, DALI, TRIAC dimmable or DMX512 support. IP65 designed is ideal solutions for outdoor applications.
Features and benefits:
▪ Small luminaire is discreet and place the focus on the light itself which particularly advantageous in compact room situations.
▪ Standard concealed cable type round base or spike:
(1) Round base for wall, ground or ceiling surface mounting.
(2) Ground spike for ground mounting.
▪ Light distributions: narrow spot, spot, flood, wide flood, extra wide flood or wall-wash.
▪ Optional light accessories for soft light: honey comb louver, honeycomb glass and filter.
▪ Optional lamp body color: silver grey and black.
▪ With optional other extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications.
(1) Screw fixed pole mounting Bracket;
(2) Mounting Bracket with stainless steel tree strap;
(3) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or ground spike.
▪ Multiple direction adjustable for projection direction.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ Die-cast aluminum lamp housing and spike.
▪ Optional 0/1-10V, DALI, DMX 512, TRIAC dimming or controllable support.
▪ IP65 grade, Dust-tight and water jet-proof.
▪ 3 years warranty.
Technical Specifications:
| Item Number |
Control
Method
|
Light Source | CRI |
Optional Beam
Angle(°)
|
Input Voltage | Typical Power |
Typical Luminous
Flux(lm) |
IK
Rate |
| B3QBB0458 | ON/OFF |
4×3W
CREE LED
Single Color
|
Ra>80 |
6°, 12°,
25°,40°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=11.6
110V=12.8
240V=12.8
|
Cool White=861
Warm White=696 |
IK06 |
| B3QBB0418 | PWM |
4×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 12.6 | 278 | IK06 |
| B3QBB0418DMX | DMX |
4×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 12.6 | 278 | IK06 |
| B3QBB0420 | PWM |
4×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 16.5 | 398 | IK06 |
| B3QBB0420DMX | DMX |
4×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60° |
24VDC | 16.5 | 398 | IK06 |
| B3QBB0115 | ON/FF |
1×15W
CREE COB LED
Single Color
|
Ra>80 |
18°, 24°,
38°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=15.2
110V=15.2
240V=15.2
|
Cool White=881
Warm White=706 |
IK06 |
Notes:
1. Optional color or Color Temperature for single color:
Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green and others.
2. 12VDC working voltage is available;
3. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
4. Specifications are subjected to change without notice.
Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:
Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:
(2) Round base: for ground/wall/ceiling surface mounting.
(3) Extended pole(300/500/800mm) with round base (fixed by screws)
(4)(5) Ground spike: ground mounting.
(6) Extended pole(300/500/800mm) with ground spike
(7) Mounting Bracket with stainless steel tree strap: for mounted on tree.
(8) Screw fixed pole mounting Bracket: mounted on pole
