RGBW DMX PWM 100LM/W 6x3W LED Landscape Spot Lights

RGBW DMX PWM 100LM/W 6x3W LED Landscape Spot Lights

MOQ: 1 psc
Standard Packaging: 1piece/Box
Delivery Period: 5-8 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100,000PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
COMI LIGHTING
Certification
CE ROSH
Model Number
B3QEB0618
Input Voltage:
24Vdc Or 220-240Vac (110-120Vac Is Available).
Light Source:
6x3W/4W
Color:
Single Color /RGB (3-in-1)/RGBW(4-in-1).
CIR:
90
Dimming Or Controllable:
0/1-10V, DALI, DMX 512, TRIAC
Lamp Body Color:
Silver Grey And Black.
Housing And Spike Material:
Die-cast Aluminum
IP Rate:
IP65 Grade, Dust-tight And Water Jet-proof
Application:
Garden Lights ,underground Light,outdoor Light, Indoor Light ,Landscape
Working Lifespan:
50000
Warranty:
3 Years
Minimum Order Quantity:
1 psc
Packaging Details:
1piece/Box
Delivery Time:
5-8 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100,000PCS/MONTH
High Light:

6x3W LED Landscape Spot Lights

,

100LM/W LED Landscape Spot Lights

,

DMX PWM LED Flood Lamp

Product Description

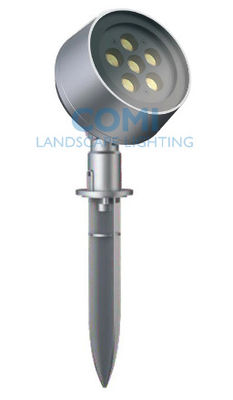

6x3W single/RGB/RGBW LED Landscape Spot Lights With Spike

COMI Landscape lighting's B3Q is a an ideal LED architectural and landscape lighting for large buildings and objects. The round and conically-shaped luminaire housing which provides outstanding visual confort with good shielding properties. With various lens types and lens angle for options, the family of luminaires consists of several sizes with diverse light distributions-ranging from narrow spot, and wide flood to homogeneous wallwashing. Its circular design means the luminaire can be flexibly used in highly different room situations, architectural styles and other landscape objects. The pan-and-tilt mounting plate enables the luminaires to be precisely aligned for projection angle. Optional PWM, 0-10V, DALI, DMX512 dimming or control support upon request. IP65 rated and weather-proof housing design. B3Q features extensive mounting accessories the luminaire is also easy to install in a wide variety of outdoor applications.

Features and benefits:
▪ Utalizes 6pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW), or 1piece COB CREE LED LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with ground spike, also provides other optional mounting accessories:
(1) Round base;.
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Mono color, tunable white color, RGB, RGBW are available.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).

Material Specifications:

Housing 12 Die-casting grey or black powder coated aluminum.
T=50-55μm . Adhesion of ISO class 1/ASTM class 4B
Light Window Clear Temper glass.
Lens Optical lens, efficiency≥90%
LED CREE, OSRAM, EPISTAR and etc LED
PCB Excellent heat conductivity aluminum, coefficient of
Heat Conductivity≥2.0w/mk
LED Driver Integrated LED driver with Constant current output
Power Cable ▪ 0.5meters H05RN-F 2-core*1.0mm² to open wires (Low voltage)
▪ 0.5meters H05RN-F 3-core*0.75mm² to open wires(High voltage, or Tunable white)
▪ 0.5meters H05RN-F 4-core*0.75mm² to open wires(for RGB)
▪ 0.5meters H05RN-F 5-core*0.50mm² to open wires(for RGBW, or DMX512)
Operating Temperature -20℃~+40℃
Round Base (included) Aluminum
Support DALI, 0~10V,PWM, DMX512 control support upon request.





Technical Specifications:

Item Number



Control
Method
Light Source CRI



Optional Beam
Angle(°)



Input Voltage Typical Power
Typical Luminous
Flux(lm)
IK
Rate
B3QEB0658 ON/OFF
6×3W
CREE LED
Single Color
Ra>80
6°, 12°,
25°,40°, 60°
24VDC
110-120VAC
220-240VAC
24V=18.2
110V=18.3
240V=18.3
Cool White=1356
Warm White=1161
IK10
B3QEB0618 PWM
6×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 18.6 372 IK10
B3QEB0618DMX DMX
6×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 18.6 372 IK10
B3QEB0620 PWM
6×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 24 720 IK10
B3QEB060DMX DMX
6×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 24 720 IK10
B3QEB0125 ON/OFF
1×15W
CREE COB LED
Single Color
Ra>80

18°, 24°,

38°, 60°

24VDC
110-120VAC
220-240VAC
24V=18.5
110V=18.5
240V=18.5
Cool White=1420
Warm White=1222
IK10

Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.




Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:

RGBW DMX PWM 100LM/W 6x3W LED Landscape Spot Lights 0





Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:

RGBW DMX PWM 100LM/W 6x3W LED Landscape Spot Lights 1
