Product Details:
|
| Item Name: | Outdoor IP66 Floodlight | Input Voltage: | 24VDC Or 22-240vac |
|---|---|---|---|
| LED Options: | 12pcs, 24pcs. 36pcs Osram Or CREE LED | Power: | 12W/24W/36W/72W |
| Color: | Single Color, Or RGB | Function: | ON/OFF, DMX512 For Options |
| Material: | Aluminum | Finished Color: | Gery |
| IP Rate: | IP66 | Warranty: | 3 Years |
| High Light: | Honeycomb Louver Outdoor LED Floodlight,Adjustable Bracket Outdoor LED Floodlight,72W Led Floor Lamp |
||

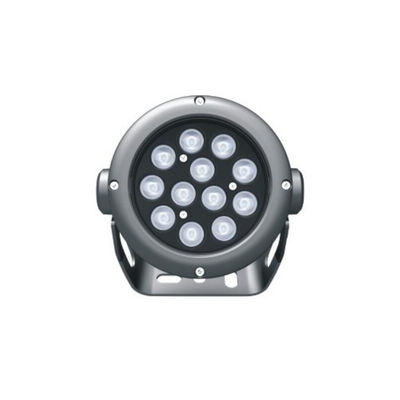

High Power LED Floodlight with 12LEDs, 24LEDs, 36LEDs.
Product Parameters:
| Product Code | TGD20F-12-XX | TGD20F-24-XX | TGD20F-36-XX |
| LED light Source | 12pcs 1W/2W LED | 24pcs 1W/2W LED | 36pcs 1W/2W LED |
| LED brand | Osram or Cree | Osram or Cree | Osram or Cree |
| Power | 12W/24W | 24W/48W | 36W/72W |
| Beam angle | 5/10/15/25/45/60/90 | 5/10/15/25/45/60/90 | 5/10/15/25/45/60/90 |
| operating Voltage | 24VDC, or 220-240VAC | 24VDC, or 220-240VAC | 24VDC, or 220-240VAC |
| IP rate | IP65 | IP65 | IP65 |
| Lamp Size | D140*H160 | D185*H190 | D215*H200MM |
| Optional accessories | Honeycomb Louver | ||
| Material | Aluminum alloy | ||
| Installation | by adjustable Bracket | ||
| Warranty | 3 years | 3 years | 3 years |
The floodlight is a luminare that provides more illumination on a give illminated surface than the surrounding environment, it can usually be aimed at any direction and has a construction that is not affected by weather condistions. The products are widely used in building silhouettes, stadiums, overpasses, mounments, parks and flowerbeds. Therefore, almost all large area lighting fixtures used outdoors an be reguarded as floodlights.
