| MOQ: | No MOQ |
| Standard Packaging: | 4pcs/cartons |
| Delivery Period: | 3-18days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 10000PCS per month |

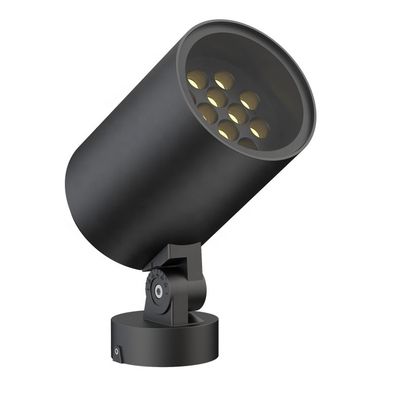

Features and benefits:
▪ Utilizes 12pcs*3W or 4W as its light source.
▪ 70-80LM/W.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with ground spike, also provides other optional mounting accessories:
(1) Round base;.
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Mono color, tunable white color, RGB, RGBW are available.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).
Material Specifications:
| Housing | 12 Die-casting grey or black powder coated aluminum. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B |
| Light Window | Clear Temper glass. |
| Lens | Optical lens, efficiency≥90% |
| LED | CREE, OSRAM, EPISTAR and etc LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver | Integrated LED driver with Constant current output |
| Power Cable | ▪ 0.5meters H05RN-F 2-core*1.0mm² to open wires (Low voltage) ▪ 0.5meters H05RN-F 3-core*0.75mm² to open wires(High voltage, or Tunable white) ▪ 0.5meters H05RN-F 4-core*0.75mm² to open wires(for RGB) ▪ 0.5meters H05RN-F 5-core*0.50mm² to open wires(for RGBW, or DMX512) |
| Operating Temperature | -20℃~+40℃ |
| Spike (included) | ABS |
| Exended Pole/round Base (Optional) | Aluminum (order separately) |
| Support | DALI, 0~10V,PWM, DMX512 control support upon request. |
Technical Specifications:
| Item Number |
Control
Method
|
Light Source | CRI |
Optional Beam
Angle(°)
|
Input Voltage | Typical Power |
Typical Luminous
Flux(lm)
|
IK
Rate
|
| B3QDM1258 | ON/OFF |
12×3W
CREE LED
Single Color
|
Ra>80 |
6°, 12°,
25°,40°, 60°
|
24VDC
110-120VAC
220-240VAC
|
24V=36
110V=36
240V=36
|
Cool White=2750
Warm White=2299
|
IK10 |
| B3QDM1218 | PWM |
12×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 36 | 724 | IK10 |
| B3QDM1218DMX | DMX |
12×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 36 | 724 | IK10 |
| B3QDM1220 | PWM |
12×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 48 | 1341 | IK10 |
| B3QDM1220DMX | DMX |
12×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 48 | 1341 | IK10 |
| B3QDM0130 | ON/OFF |
1×30W
CREE COB LED
Single Color
|
Ra>80 |
18°, 24°, 38°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=29
110V=29
240V=29
|
Cool White=2378
Warm White=2021 |
IK10 |
Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
