Product Details:
|

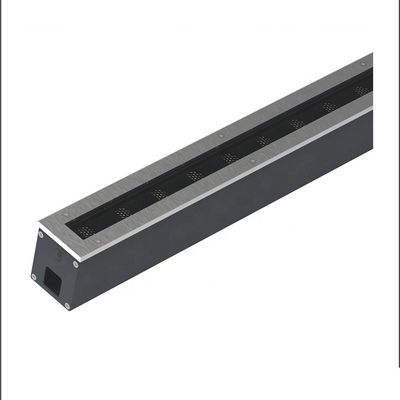

| Item Name: | Recessed Linear Inground Lights | Color: | Single Color, RGB, RGBW |
|---|---|---|---|
| LED: | 18 Or 24pcs (1000mm), 12pcs(500mm) And 6pcs (300mm) | IP Rate: | IP67 |
| Material: | 316 Stainless Steel And Aluminum Alloy | Mounting Sleeve: | Included, Made Of Aluminujm |
| Length: | 500mm, 1000mm And Etc. | Warranty: | 2 Years |
| High Light: | RGBW Linear LED Inground Light,SS316 Linear LED Inground Light,500mm Length Outdoor Wall Washer Light |
||
Features and benefits:
▪ Different lengths are available: 300mm, 500mm and 1000mm
▪ Light source: 18 or 24pcs (1000mm), 12pcs(500mm) and 6pcs (300mm)
▪ 24VDC, or 110-240Vac 50/60Hz input.
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Colour: 2200-6500K, Red, Green, Blue, Yellow and RGB 3-IN-1.
▪ SUS316 stainless steel front cover and aluminium housing.
▪ Standard is non-dimmable by PWM, DALI, 0/1-10V.
Optional dimmable DALI, 0/1-10V support.
▪ Easy Vertical wall recessed install by mounting sleeve.
▪ Aluminium mounting sleeve included.
▪ IP classification: IP67.
▪ 2 Years warranty.
Material Specifications:
| Housing | Extruded aluminium, power coated |
| Front Cover | SUS316L# Stainless steel |
| Light Window | Tempered glass |
| Lens | Optical lens,efficiency≥85% |
| Cable Gland | IP68 PG-9 copper with nickel coated |
| Gasket | Glass and housing silicone sealed |
| Operating Temperature | -20˚C~40˚C |
| Power Cable | ▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage) ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage) ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB) |
| Mounting sleeve(Included) | Aluminium |
Technical Specifications:
|
Part Number
|
Length (MM) |
Light Source |
Color
|
Beam Angle
|
Input Voltage(V)
|
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
IK rate
|
|
B2RLC0657
|
300
|
6x2W
LED |
Single Color
|
30°
|
24VDC
120/240V |
24V=500mA
120=110mA 240V=60mA |
24V=12W
110=12.2W 240V=12.3W |
Cool white=910
Warm white=891 |
10
|
|
B2RLC1257
|
500
|
12x2W
LED |
Single Color
|
30°
|
24VDC
120/240V |
24V=1042mA
120=220mA 240V=110mA |
24V=25W
110=24.1W 240V=24.2W |
Cool white=1900
Warm white=1780 |
10
|
|
B2RLC1859
|
1000
|
18x3W
LED |
Single Color
|
30°
|
24VDC
120/240V |
24V=2000mA
120=455mA 240V=227mA |
24V=48W
110=50W 240V=50W |
Cool white=3264
Warm white=2970 |
10
|
|
B2RLC2457
|
1000
|
24x2W
LED |
Single Color
|
30°
|
24VDC
120/240V |
24V=2000mA
120=455mA 240V=227mA |
24V=48W
110=51W 240V=52W |
Cool white=3340
Warm white=3002 |
10
|
|
B2RLC0618
|
300
|
6x3W
RGB 3-in-1 LED |
RGB
|
30°
|
24VDC
|
R=150
G=188 B=188 |
13
|
407
|
10
|
|
B2RLC1218
|
500
|
12x3W
RGB 3-in-1 LED |
RGB
|
30°
|
24VDC
|
R=300
G=375 B=375 |
25.6W
|
801
|
10
|
|
B2RLA2418
|
1000
|
24x3W
RGB 3-in-1 LED |
RGB
|
30°
|
24VDC
|
R=537
G=606 B=602 |
58.6
|
1830
|
10
|
Note: Specifications are subjected to change without notice.
