| MOQ: | No MOQ |
| Standard Packaging: | 4pcs/cartons |
| Delivery Period: | 3-20days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 10000pcs/month |
Features and benefits:

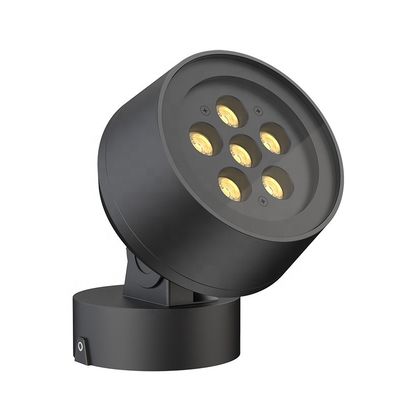

▪ 6pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW) Cree High power LED or 1piece CREE COB LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with round base for wall/ceiling/ ground surface mounted;
also provides extensive mounting accessories for options:
(1) Ground spike;.
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).
Technical Specifications:
| Item Number |
Control
Method
|
Light Source | CRI |
Optional Beam
Angle(°)
|
Input Voltage | Typical Power |
Typical Luminous
Flux(lm)
|
IK
Rate
|
| B3QEM0658 | ON/OFF |
6×3W
CREE LED
Single Color
|
Ra>80 |
6°, 12°,
25°,40°, 60°
|
24VDC
110-120VAC
220-240VAC
|
24V=18.6
110V=18.6
240V=18.6
|
Cool White=1355
Warm White=1161
|
IK10 |
| B3QEM0618 | PWM |
6×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 18.2 | 422 | IK10 |
| B3QEM0618DMX | DMX |
6×3W
RGB 3-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 18.2 | 422 | IK10 |
| B3QEM0620 | PWM |
6×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 24 | 718 | IK10 |
| B3QEM0620DMX | DMX |
6×4W
RGBW 4-in-1
Full Color
|
/ |
6°, 12°,
25°,40°, 60°
|
24VDC | 24 | 718 | IK10 |
| B3QEM0125 | ON/OFF |
1×20W
CREE COB LED
Single Color
|
Ra>80 |
18°, 24°, 38°, 60° |
24VDC
110-120VAC
220-240VAC
|
24V=18.6
110V=18.5
240V=18.5
|
Cool White=1402
Warm White=1265 |
IK10 |
Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:
|
|
