Features:
▪ Working voltage and Power: 24VDC 3.2W per module.
▪ Light Source: 7pcs Nichia LED per Module.
▪ Color: single color, tunable white(2700K+6500K), RGB.
▪ Control method: ON/OFF, PWM, DMX.
▪ Sealed with fully transparent and waterproof materials.
▪ Symmetric optic lens: 20°, 30°.
▪ Max 100W per continous run.

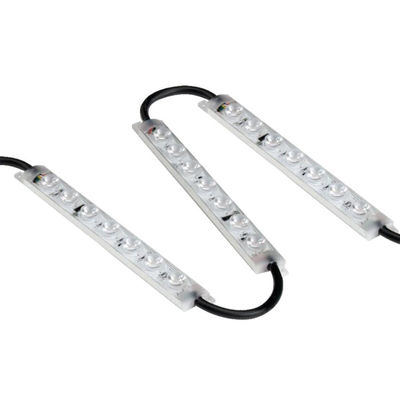

▪ Wall washer module String comes with IP67 male&female connector.
▪ Dimensions: L197 x W23 x H11mm /Module.
▪ IP Rate: IP67 Waterproof.
▪ Installation: Surface mount, screws fixed.
▪ Application: suit for commercial lighting,wall washing illumination
▪ Working Temperature: -40~+45 ℃
▪ 3 years warranty.
Technical Parameters:
| Part Number |
Control
Method
|
Color or
CCT(K)
|
CRI |
Input
Voltage
|
Power
(W/module)
|
Luminous Flux (lm/Module) @3000K |
Pixel
Quantity
|
IP Rate |
| B6FP0703M-XX | ON/OFF, PWM | 2500-6500K |
Ra≥80
(Ra≥90)
|
24VDC | 3.2W | 345LM | / | IP67 |
| B6FP0703M-TW | ON/OFF, PWM | 2700K+6500K |
Ra≥80
(Ra≥90)
|
24VDC | 3.2W | 383LM | / | IP67 |
| B6FP0703M-RGB-DMX | DMX | RGB | / | 24VDC | 3.2W | / | 1pixel/module | IP67 |
Note: Specifications are subjected to change without notice.
Product Drawing:
Average Light Distribution:
Installation Method:
video
video
video
video
|
|
