| MOQ: | 10pcs |
| Standard Packaging: | 4pcs/carton |
| Delivery Period: | 3-20days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000pcs/month |

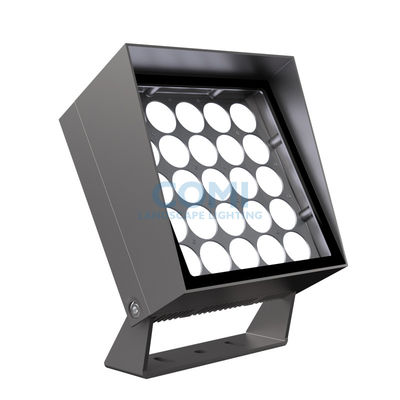

LED Flood Lights with Glare Shield And U-Shape Bracket IP66 Rated Design for Outdoor Landscape Lighting & Architecture Lighting
Photoelectron zoom functional Zoomdim series LED flood lights featured electronic zoom thanks to the lighting fixtures adopts special design 4-in-1 optical lens module and high-speed computing feedback chip on inner circuit PCB board. The lens module is integrated on a square structure by four different angle lenses. The lighting beam angle and brightness of Zoomdim series LED flood light can be adjusted by press bottom on the touch screen switch on the back of the lighting fixtures. The lighting fixture can be also controlled by Bluetooth function via smartphone or pad. IP66 rate design for outdoor use.
Features and Benefits of Outdoor Garden Flood lights:
1. Ultra narrow beam angle to wide beam angle for options:
2.5°, 4.5°, 6°, 8°, 12°, 20°, 30°, 45°, 60°,10X70°,5X20°,15X60° and etc.
2. Smart Product parts can be quickly disassembled and exchanged:
(1) to meet different kinds lighting application installation requirement;
(2) It is convenient for long-distance upgrade and maintenance.
3. Optional smart Product parts:
(1) Round base; (2) Spike (Stake); (3) U-shape Bracket; (4) Pole mounted hoop;
(5) Dia. 48 lamp arm; (6) Bracket with Tree strap; (7) Pole mounted screw Fixed parts.
(8) Honeycomb louver for anti-glare light output.
Technical Specifications:
| Item No. | Control Mode | Color | Light Source |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Rated
Power
|
Luminous Flux
(lm)@4000K
|
IK Rate |
| B3ZF25120H-X B3ZF25150H-U |
CC, DALI, 0-10V
|
Single Color |
25pcs Cree
or Osram LED
|
2.5°, 4.5°, 8°, 12°,
20°, 30°, 45°, 60°,
10×70°5×20°
|
100-305VAC
50/60Hz
|
120W,
150W(U)
|
10000~15000LM | IK10 |
| B3ZF24150H-X B3ZF24200H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
24pcs Cree
4-in-1 LED
|
8°, 15°, 20°,30°,
15×60°
|
36VDC, or
100-305VAC 50/60Hz
|
150W,
200W
|
5000~7000LM | IK10 |
| B3ZF24150H-X B3ZF24200H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
24pcs Osram
4-in-1 LED
|
3.5° |
24VDC, or
100-305VAC
50/60Hz
|
150W,
200W
|
5000~7000LM | IK10 |
| B3ZF48120H-X B3ZF48150H-U |
CC, DALI, 0-10V
|
Single Color |
48pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
36VDC, or
100-305VAC
50/60Hz
|
120W,
150W(U)
|
10000~15000LM | IK10 |
| B3ZF48120H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
48pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
36VDC, or
100-305VAC
50/60Hz
|
120W | 10000~12000LM | IK10 |
| Z3ZF96120H-X |
Touch Panel/
Screen
|
Single Color |
96pcs
Cree LED
|
7～36°
Photoelectron
zoom
|
24VDC, or
100-305VAC
50/60Hz
|
120W | 10000~12000LM | IK10 |
| B3ZF04120H-X |
DMX512/
RDM
|
Single Color |
4pcs
Cree COB LED
|
12° , 24° , 36° , 70° |
100-305VAC
50/60Hz
|
120W | 10000~12000LM | IK10 |
Notes:
1. (U) in rated power stands for "U-shape bracket model only";
2. Color: single color, tunable white, RGB, RGBW are available upon request.
3. Specifications are subjected to change without notice.
Optional Smart Installation Parts:
| Name of Parts | Round base | U-shape Bracket | Spike (stake) | Dia. 48mm arm | Pole hoop | Screws fixed type base | Tree strap |
| Installation modes | Surface Mount on the ground, wall or Ceiling | Surface Mount on the ground, wall or Ceiling | On Ground mount by spike (stake) | Installed onto dia. 48mm pole arm | Pole Mount by hoop | Pole mount by screws fixed type base& screws | LED floodlight mount on tree or pole by strap. |
| Code No. for Parts | B | U | S | A | H | L | T |
