| MOQ: | 10pcs |
| Standard Packaging: | 4pcs/carton |
| Delivery Period: | 3-20days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 10000pcs per month |

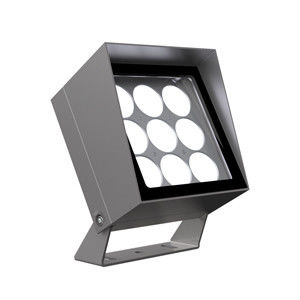

IP66 LED Landscape Lights DMX512 RDM 0-10V DALI Dimming Support For Best Landscape Lighting
Landscape lighting design Advantage:
1. lighting beam angle and brightness can be adjusted by touch screen , or by Bluetooth via smartphone or Pad.
2. Uniform light spot, no hollow, no edge yellow spots.
3. Electronic zoom by algorithm, beam angle adjusted evenly.
4. Excellent mixed light and color.
5. Delicate and smooth brightness dimming effect.
6. IP66 Protection grade for outdoor environment.
7. Product parts can be quickly disassembled and exchanged, which is convenient for long-distance upgrade and maintenance.
8. The product made of aluminum alloy combined with fluorocarbon spraying surface treatment, and the floodlight is isolated the dual cavity independent heat dissipation structure.
9. The exterior design follows the “less is more” concept German Bauhaus, which combines modern architecture with lamps.
10. In addition to the traditional control methods, this series of products can be operated by touch screen control on back of fixture, and the lighting fixture can be electronic focusing via internal algorithm.
11. Combined with optical modular lens and Electronic zoom to make the flood light with narrow, small, medium, and medium-large beam angle adjustable function .
14. Rectangular beam angle adjustable is optional.
15. 4K high-speed feedback chip for electronic focusing.
16. Double-layer fluorocarbon spraying process.
17.Password security lock for lamps.
18. Excessive accessories/parts for various kinds of installation to meet different application.
Installation: Integrated tilting, surface-mounting base allows easy installation on the ground, wall or ceiling; Max adjustment from the horizontal: -10º to +10º and vertical: -40º to +90º.
Technical Specifications:
| Item No. | Control Mode | Color | Light Source |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Rated
Power
|
Luminous Flux
(lm)
|
IK Rate |
| B3ZD945H-X B3ZD945H-U |
CC, DALI, 0-10V
|
Single Color |
9pcs Cree
or Osram LED
|
2.5°, 4.5°, 8°, 12°,
20°, 30°, 45°, 60°
,10×70°, 5×20°
|
100-305VAC
50/60Hz
|
45W,
60W(U)
|
4000~6000LM | IK10 |
| B3ZD960H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
9pcs Cree
4-in-1 LED
|
8°, 15°, 20°,30°,
15×60°
|
36VDC, or
100-305VAC 50/60Hz
|
60W
|
2000~2200LM | IK10 |
| B3ZD960H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
9pcs Osram
4-in-1 LED
|
3.5° |
24VDC, or
100-305VAC
50/60Hz
|
60W
|
2000~2200LM | IK10 |
| B3ZD1845H-X B3ZD1860H-U |
CC, DALI, 0-10V
|
Single Color |
18pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
36VDC, or
100-305VAC
50/60Hz
|
45W,
60W(U)
|
4000~4500LM | IK10 |
| B3ZD1836H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
18pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
36VDC, or
100-305VAC
50/60Hz
|
36W | 1200~1300LM | IK10 |
| Z3ZD3645H-X |
Touch Panel/
Screen
|
Single Color |
36pcs
Cree LED
|
7～36°
Photoelectron
zoom
|
24VDC, or
100-305VAC
50/60Hz
|
45W | 4000~4500LM | IK10 |
| B3ZD0145H-X |
DMX512/
RDM
|
Single Color |
1pcs
Cree COB LED
|
12° , 24° , 36° , 70° |
100-305VAC
50/60Hz
|
45W | 4000~4500LM | IK10 |
Notes:
1. (U) in rated power stands for "U-shape bracket model only";
2. Color: single color, tunable white, RGB, RGBW are available upon request.
3. Specifications are subjected to change without notice.
Optional Parts for different instllation to meet many kinds Applications:
|
|
