| MOQ: | 20pcs |
| Standard Packaging: | 16pcs/cartons |
| Delivery Period: | 3-20days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000pcs per month |

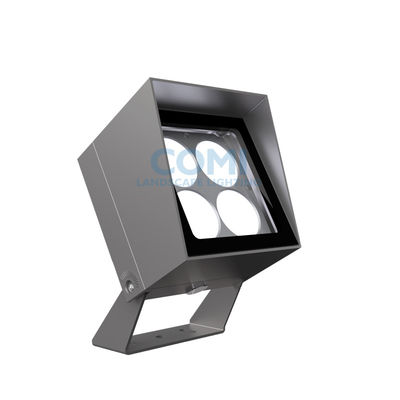

Garden Flood Lights With Visor For 24V Or 36V Low Voltage Led Landscape Lighting
Technical Specifications for 20W or 30W Garden Stake Lights and Architecture Lighting
| Item No. | Control Mode | Color | Light Source |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Rated
Power
|
Luminous Flux
(lm)
|
IK Rate |
| B3ZC04020H-X |
CC, DALI,
0-10V |
Single Color |
4pcs Cree
or Osram LED
|
2.5°, 4.5°, 8°, 12°,
20°, 30°, 45°, 60°
,10×70°, 5×20°
|
100-264VAC
50/60Hz
|
20W
|
1800~2000LM | IK10 |
| B3ZC04030H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
4pcs Cree
4-in-1 LED
|
8°, 15°, 20°,30°,
15×60°
|
24VDC
|
30W
|
1050LM | IK10 |
| B3ZC04030H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
4pcs Osram
4-in-1 LED
|
3.5° |
24VDC
|
30W
|
1050LM | IK10 |
| B3ZC08020H-X |
CC, DALI, |
Single Color |
8pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
24VDC, or
100-240VAC
50/60Hz
|
20W
|
1800~2000LM | IK10 |
| Z3ZC16018H-X |
Touch Screen
|
Single Color |
16pcs
Cree LED
|
7～36°
Photoelectron
zoom
|
24VDC, or
100-305VAC
50/60Hz
|
18W | 1600~1800LM | IK10 |
| B3ZC01020H-X |
CC, DALI,
|
Single Color |
1pcs
20W Cree COB LED |
12° , 24° , 38° , 45° ,60° |
100-264VAC
50/60Hz
|
20W | 1800~2000LM | IK10 |
Notes:
1. (U) in rated power stands for "U-shape bracket model only";
2. Color: single color, tunable white, RGB, RGBW are available upon request.
3. Specifications are subjected to change without notice.
Item Number named method for IP66 Exterior Flood lights:
| B | 3 | Z | C | 4 | 020 | H or Blank | -X |
| Lens Type: B-Symmetrical Lens Z: 4-in-1 modular lens for Photoelectron zoom |
Series-3:
LED Architecture and |
Zoomdim Series | Code No. for lamp housing |
LED Quantity | Power of lighting fixture | H: Flood lights with Hood (light shield/ visor) | Installation Mode/ Part (please view below) |
Applications:
The LED flood lighting fixture is designed and suitable for outdoor lighting for park, hotel, villa, plaza, museum, stadium, sculpture, monument, tree, temple, church, mountain and etc.
|
|
