Product Details:
|
| Product Name: | Drive Over LED Inground Lights | Input Voltage: | 24VDC, 110-120VAC, 220-240VAC |
|---|---|---|---|
| LED Light Source: | SMD LED | Color: | Single Color, Or RGB Color |
| Output Way: | 1 Way, 2 Ways, 4 Ways | Materials: | SUS316 Stainelss Steel Cover And Aluminum Housing |
| IP Rate: | IP67 Waterproof | Warranty: | 2 Years |
| High Light: | SUS316 SMD LED Inground Light,16×2835 SMD LED Inground Light,240VAC Underground Led Landscape Lighting |
||

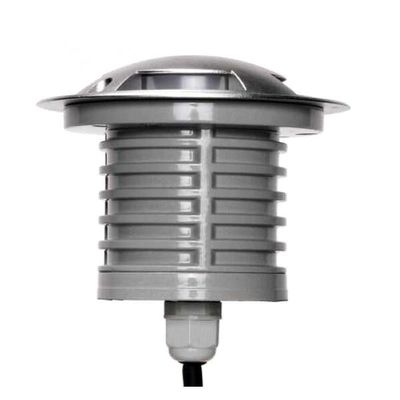

In Ground Driveway Lights IP67 For Drive Over Underground Led Landscape Lighting
In Ground Driveway Lights an excellent choice to illuminate your exterior pathways. 1.5 watt or 6W available models are ideal for illuminating trees or other mid-range landscape features. E2WC1612 is a SUS316 stainless steel front cover and aluminum housing finish with an LED light source that provides 2700-6500K from warm white light to cool white.
Material Specifications:
Housing: 12# Die-casting grey powder coated aluminum, T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front cover: Stainless steel
Glass: Step tempered clear glass. T=8mm
Loading capacity: >2000kg
Cable gland : IP-68 PG-9 PVC
Gasket: Molding shaped silicone seal
Driver: Constant current output
Operating temperature: -20℃~ 40℃
Power cable: H05RN-F 2X1 .0mm2 L=0.5m (low voltage)
H05RN-F 3X1.0mm2 L=0.5m (high voltage)
Mounting sleeve: PVC
Technical Specifications:
|
Item Number
|
Light Source
|
Input Voltage
|
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance (lm) |
IK Rate
|
|
1E2WC1612
|
16×2835 SMD
Osram LED |
24VDC
120/240VAC |
24V=66
120V=13 240V=7 |
24V=1.6
120V=1.5 240V=1.5 |
Cool White=1.5
Warm White=1.3 |
10
|
|
2E2WC1612
|
16×2835 SMD
Osram LED |
24VDC
120/240VAC |
24V=66
120V=13 240V=7 |
24V=1.6
120V=1.5 240V=1.5 |
Cool White=2.0
Warm White=1.5 |
10
|
|
4E2WC1612
|
16×2835 SMD
Osram LED |
24VDC
120/240VAC |
24V=66
120V=13 240V=7 |
24V=1.6
120V=1.5 240V=1.5 |
Cool White=2.0
Warm White=1.5 |
10
|
Notes:
1. RGB color is available, please inquire seperately.
2. Specification is subjected to change without prior to notice.
