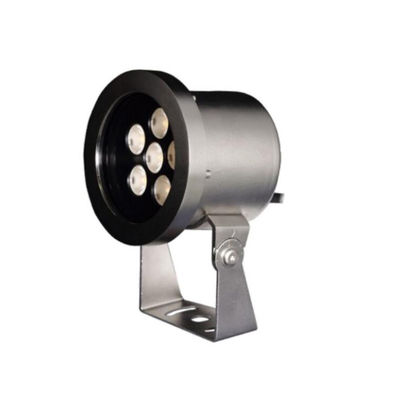

SS316 LED Underwater Spot Light 6x3W 1x20W COB LED In Single RGB RGBW

SS316 LED Underwater Spot Light 6x3W 1x20W COB LED In Single RGB RGBW

MOQ: No MOQ
Standard Packaging: 20PCS/CARTON
Delivery Period: 3-20days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000pcs per month
Detail Information
Place of Origin
China
Brand Name
COMI Landscape Lighting
Certification
CE, ROHS
Model Number
B5BE0115, B5BE0657,B5BE0618,B5BE0620
Item Name:
IP68 LED Underwater Spotlight
Working Voltage:
24VDC
LED:
6PCS X 3W/4W LED, 1piece X 15W COB CREE LED
Power:
15W, 18W, 24W
Color:
Single Color 2200-6500K, RGB, RGBW
Installation:
Surface Mount On Ground Or Wall Underwater, Tripod Is Optional
IP Rate:
IP68
IK Rate:
IK10
Materials:
316# Stainless Steel
Warranty:
2 Years
Minimum Order Quantity:
No MOQ
Packaging Details:
20PCS/CARTON
Delivery Time:
3-20days
Payment Terms:
T/T, Western Union, L/C
Supply Ability:
100,000pcs per month
High Light:

850lm LED Underwater Spot Light

,

SS316 LED Underwater Spot Light

,

RGB RGBW Garden Led Spotlight

Product Description

IP68 Waterproof LED Underwater Spotlight Made Of 316 Stainless Steel 6x3W In Single RGB RGBW Color With Bracket and Optional Tripod



The SUS 316 stainless steel IP68 underwater pond light is suitable as underwater flood lights or underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.



Features:
1. Garden and underwater 15W~24W LED adjustable spotlight in a stainless steel finish, pre-wired with 3 meter cable.
2. Submersible underwater to a maximum of 2 metres
3. Body Finished Colour: Stainless Steel
4. Material: Stainless Steel 316#
5. IP Class and IK Rate: IP68, Class III and IK10
6. Low voltage 24VDC working for safe installation
7. Power Source: Mains voltage, requires Constant Voltage Driver with low voltage output 24VDC(Not included, please order separately)
8. Light Output: 15W, 900lm
9. Available Optional color: single color, RGB, RGBW.
10. Optional PWM, 0-10V, DALI or DMX512 Dimming or control support.

11. Underwater ground and wall surface mount by bracket, Optional accessory-Tripod



Warning: This IP68 luminaire (swimming pool lights underwater) is all made of SUS 316 stainless steel, so it must be installed underwater to prevent the light from burning up because of over-heating.





Technical Parameters of LED Underwater Lights:

Item No. Control Mode Color Light Source
Beam Angle
(Θ1/2)(°)
Input Voltage
Rated
Power
Luminous Flux
(lm)±10%
IK Rate
B5BE0115 ON/OFF
Single Color
2700-10000K
1×15W
Cree COB LED
15°,25°,36° 24VDC 15W 900 IK10
B5BE0657 ON/OFF
Single Color
2700-6500K
6pcs×3W
Osram LED
5°, 15°,25°
,36°,60°
24VDC 16W 850 IK10
B5BE0618 PWM RGB 6×3W
RGB 3-in-1
Full Color LED
25°, 40°,60° 24VDC 18W 380 IK10
B5BE0620 PWM RGBW 6×4W
RGBW 4-in-1
Full Color LED
25°, 40°,60° 24VDC 18W 542 IK10

Notes:
1. Optional PWM, 0-10V, DALI, DMX512 control;
2. Specifications of IP68 24V or 12V LED waterproof lights are subjected to change without notice.





Applications of marine underwater lights:

IP68 underwater light show are suitable for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

applications for marine underwater lights
