Product Details:
|
| Item Name: | IP65 Outdoor Landscape Spotlight | Input Voltage: | 24VDC, Or 100-240vac |
|---|---|---|---|
| Light Source: | 1piece 3W Or 5W CREE Or Osram LED | Color: | Single, Tunable White, Rgb, Rgbw |
| Power: | 3W,4W (RGBW), 5W | Lumen: | 370LM (5W COB LED) |
| Finished Color: | Black, Grey, White, Silver And Etc. | Surface Treatment: | Powder Coated |
| IP Rated: | IP65 | Installation Accessories: | Backet, Spike, Round Base, Tree Strap For Options |
| Light Barrier: | Visor/light Shield | Warranty: | 3 Years |
| High Light: | PWM LED Garden Spot Lights,370LM LED Garden Spot Lights,Anodized Aluminum Outdoor Led Spot Light |
||

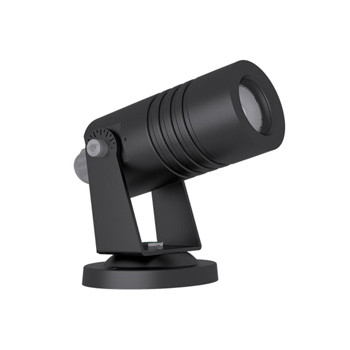

IP66 LED Outdoor Garden Lighting with Base (surface mount) or Spike (ground stake),or tree light mounting straps (mounted on tree by strap) and with optional Visor
The COMI SPOT LIGHT IP66 B3B-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting
Features and Benefits:
▪ Light source:1x5W CREE LED, or 3W RGB LED or 4W RGBW LED
▪ Power: 2.6W ~5W(Mono, 5W for COB only), 3.2W(RGB 3-in-1), 4W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪ Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪ Finished color: standard black/dark grey/silver, optional white/copper and etc.
▪ Materials: Aluminum alloy
▪ Project angle Up to down adjustable and horizontal 360° rotatable.
▪ Installation by Round base.
Optional accessory: Ground spike(PVC), tree strap, glare shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.
Technical Specifications of LED Landscape Spotlights:
|
Item Number |
Light Source |
Color |
Lens Degree
(Θ1/2)(°)
|
CRI
(Ra)
|
Input Voltage(V)
|
Typical Power
(W)
|
Luminance
(lm)
|
IK
Rate
|
Optional Mounting
Accessories
|
|
B3B0105X |
1×5W
CREE or OSRAM LED |
Single
Color
|
8°,15° |
Ra>80 |
24VDC
110-120V
220-240V
|
2.6W |
190 |
04 |
Round Base,
Spike,
Tree Strap
|
|
B3B0105X |
1×5W
CREE COB LED
|
Single
Color
|
25°, 40°, 60° |
Ra>80 |
24VDC
110-120V
220-240V
|
3~5W |
350 |
04 |
Round Base,
Spike,
Tree Strap
|
|
B3B0118X |
1×3W
RGB 3-in-1 full color LED
|
RGB
Color
|
13°,25°,
40°, 60°
|
/ |
12/24VDC |
3.2W |
68 |
04 |
Round Base,
Spike,
Tree Strap
|
|
B3B0120X |
1×4W
RGBW 4-in-1 full color LED
|
RGBW
Color
|
13°,25°,
40°, 60°
|
/ |
12/24VDC |
4.2W |
126 |
04 |
Round Base,
Spike,
Tree Strap
|
Notes:
1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:
|
X |
Mounting Accessories |
Mounting Method |
|
M |
Round base |
Surface mount on ground, wall, or ceiling |
|
B |
Spike |
Ground |
|
T |
Tree Strap |
Tree mounted by strap |
2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.
Finished Body color options for IP65 / IP66 LED Garden Spotlights
Body color available: black, dark grey, silver, white,copper and etc.
