Product Details:
|
| Product Name: | Asymmetric COB LED Underground Lights | Working Voltage: | 24VDC, Or 110-240VAC |
|---|---|---|---|
| Control Mode: | ON/OFF, Dimming, DMX | Power: | 5W, 10W, 15W, 20W, 25W, 36W |
| Light Efficiency: | 65~80LM/W | CRI: | Ra>80 |
| Color: | Single Color: 2700K/3000K/4000K/5000K/6000K | Materials: | SS316 Stainless Steel Front Cover And Aluminum Alloy Housing |
| IP Rate: | IP67 | Installation: | Recessed Mounted By Mounting Sleeve (included) |
| Warranty: | 2~5 Years | ||
| High Light: | Asymmetrical LED Inground Lights,COB Recessed LED Inground Lights,80LM/W Inground Pool Lights |
||

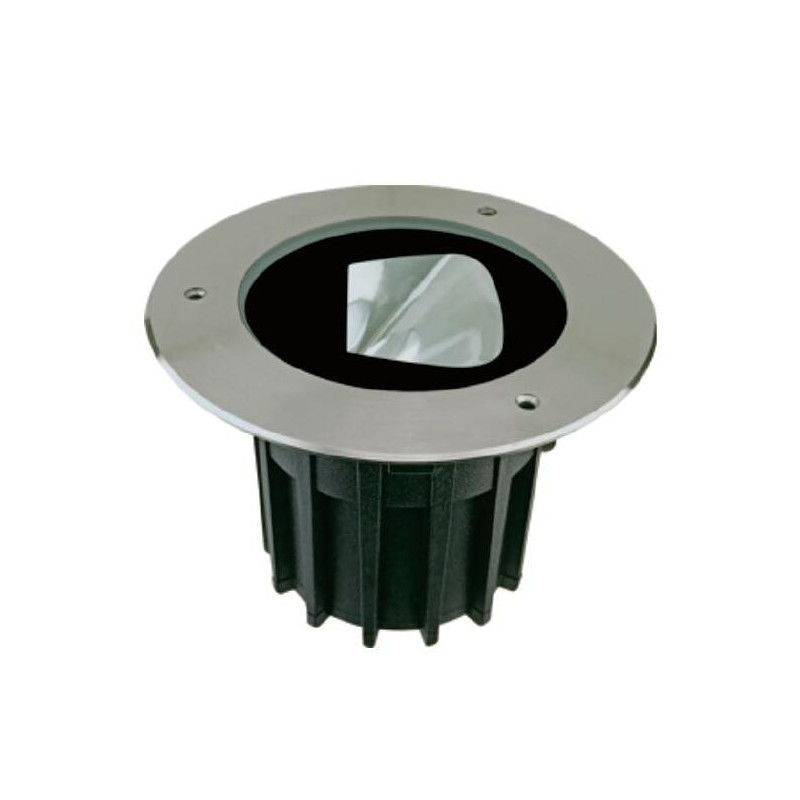

The COMI LANDSCAPE LIGHTING INGROUND LIGHT CR2H-series adopts CREE/NICHIA COB LED as its light source which is designed for floor integration and offers various design possibilities in architectural illumination because of its high light output. Optional accessory honeycomb louver for anti-glare soft light output. Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 Dimming by COMI Lighting recommended driver, dimmer, or controller, etc.
Features and Benefits:
▪ Featured with asymmetrical lens or reflector and with asymmetrical 27° light output.
▪ Light Source:5~40W COB CREE LED as its light source.
▪ Reflector efficiency≥80%.
▪ Optional honey comb louver for anti-glare and soft Light.
▪ Input Voltage 24VDC or 110/240VAC.
▪ 316 stainless steel front ring and aluminum lamp housing.
▪ High quality Mean Well brand LED driver.
▪ Full area glass pressure capacity: 1190KG/2480KG/2650KG/2823KG/2935KG/5510KG.
▪ TRIAC, PWM, 0/1-10V, DALI dimming support optional (Inquire separately).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2~5 Years warranty available.
Technical Parameters for IP67 Asymmetrical COB LED Inground Lights:
| Item No. | Light Source |
Light
Color
|
Lens Degree | Input Voltage |
Typical
Power
|
Luminous Flux (lm) | IK Rate |
| C2HAR0110 |
1×5W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
4.5W | 248~280LM | 10 |
| CR2HBR0110 |
1×10W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
7.8W | 420~470LM | 10 |
| CR2HCR0115 |
1×15W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
12W | 640~720LM | 10 |
| CR2HDR0120 |
1×20W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
18W | 900-1000LM | 10 |
| CR2HER0125 |
1×25W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
24W | 1200-1550LM | 10 |
| CR2HFR0140 |
1×40W
CREE COB LED
|
Single
Color
|
Asymmetric
27°
|
24VDC
120/240Vac
|
36W | 1600-2000LM | 10 |
1. Color temperature for light color available:2700K, 3000K, 4000K, 6000K, 6500K.
2. Specification is subjected to change without prior to notice.
IP67 COB LED Asymmetric Recessed Underground Lamps for outdoor Lighting for Options:
Dimensions for IP67 Asymmetrical COB LED Inground Lights:
