| MOQ: | No MOQ |
| Delivery Period: | 3~20days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 1,000,000Meters/Month |
Features and Benefits of Neon Flex Led Strip:

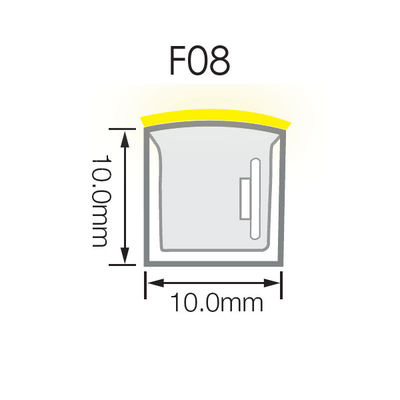

▪ Mini size: W10*H10mm, length can be customized made.
▪ Opal white diffuser and Side view light enables uniform,soft and dot free light output.
▪ Horizontable bending design and min dia. 150mm bending.
▪ High brightness output up to 500LM/meter.
▪ Ideal seamless connection solution for linear lighting.
▪ Single color: 2200-6500K, red, green, blue.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Injection moulded connector:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for mounting and installation.
▪ Max continuous length per run:
(1) One end Power feed: 5meters, or
(2) Double ends power feed: 10meters.
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.
Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.
Technical Parameters of Single color or Blue Neon Rope light:
|
Model Number
(Color Type)
|
Working Mode |
Light Color
|
Working
Voltage
|
Power
(W/M)
|
Luminous Flux (LM/meter) |
LED
Type
|
LED Q'ty
(pcs/M)
|
CRI
(Ra)
|
Beam
Angle
|
Min
Cutting
Unit
|
Max Continuous Length | |
| One End Power Feed | Double Ends Power Feed | |||||||||||
|
F08-24V-2835-120-XX
(Single Color)
|
CV |
2200~6500K,
RD, BL,GN
|
24VDC | 10W/M |
430~500LM
(White color)
|
2835 | 120LEDs/m | Ra≥80 | 120° |
10cm (3.93in)
(12LEDs)
|
5Meters
(16.4ft)
|
10Meters
(32.8ft)
|
Notes:
1.About light color of neon flex led strip:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.
Injection Moulded Connector (Factory Assembly only) for Mini Neon LED Strip:
Aluminum Mounting Chanel for IP68 Mini Flex Neon LED Strip Light
